Polygon mirror scanner motors
NF type
Overview
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW or CCW
Driver circuit built-in.
PLL control by external clock.
Bearing : Low vibration and stable high speed rotation by Insourcing oil bearing
High speed : High speed and low jitter are realized
by custom made IC and insourcing bearing
(~ 50,000/min、0.015% max.)

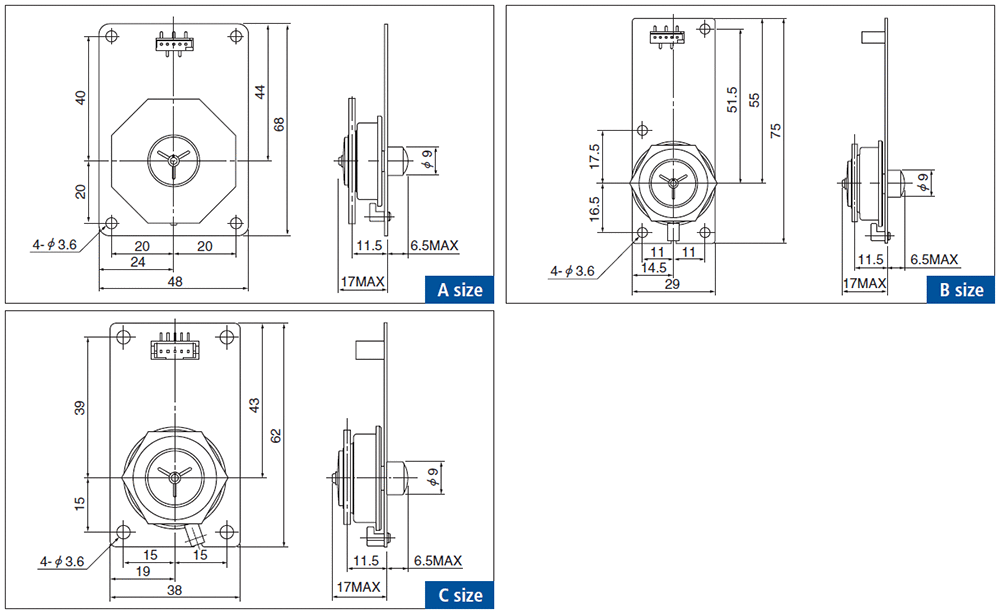

Overall View
Specifications
| Operating Voltage Min. [VDC] |
Operating Voltage Nom. [VDC] |
Operating Voltage Max. [VDC] |
Speed Min. [/min] |
Speed Max. [/min] |
Current Max. [A] |
Jitter Max. [%] |
Pyramidal error Max. [arc sec.] |
Starting Time Max. [sec.] |
|---|---|---|---|---|---|---|---|---|
| 21.6 | 24.0 | 26.4 | 18000 | 50000 | 0.7 | 0.015 | 120 | 2.0 |
| Operating Voltage Min. [VDC] |
Operating Voltage Nom. [VDC] |
Operating Voltage Max. [VDC] |
Speed Min. [/min] |
Speed Max. [/min] |
Current Max. [A] |
Jitter Max. [%] |
|---|---|---|---|---|---|---|
| 21.6 | 24.0 | 26.4 | 18000 | 50000 | 0.7 | 0.015 |
| Pyramidal error Max. [arc sec.] |
Starting Time Max. [sec.] |
|---|---|
| 120 | 2.0 |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
