Roller Rod End Bearings

ASR

  • Single Row
  • Self Alining
  • Bearing

Dimension

Part No. B +.0000/-.0005
[Inch]
D +.000/-.050
[Inch]
W +.000/-.005
[Inch]
H +.000/-.015
[Inch]
A ±.005
[Inch]
P°lower limit LIMIT LOAD RATING RADIAL
[LBS]
LIMIT LOAD RATING AXIAL
[LBS]
DYNAMIC LOAD RATING RADIAL
[LBS]
NET WEIGHT
[LBS]
INTERNAL FIT STANDARD RADIAL CLEARANCE
lower limit
[Inch]
INTERNAL FIT STANDARD RADIAL CLEARANCE
upper limit
[Inch]
INTERNAL FIT REDUCED RADIAL CLEARANCE
lower limit
[Inch]
INTERNAL FIT REDUCED RADIAL CLEARANCE
upper limit
[Inch]
INTERNAL FIT PRELOAD RADIAL
lower limit
[LBS]
INTERNAL FIT PRELOAD RADIAL
upper limit
[LBS]
MS NO. (Memo)

Overall View

Material

(P/N) OUTER RING INNER RING ROLLER SHIELD SEAL
ASR 52100 Cadmium Plated 52100 Cadmium Plate 52100 300 or 400 CRES PTFE/Glass
ASR-CR 440C Cadmium Plated 440C Cadmium Plate 440C 300 or 400 CRES PTFE/Glass

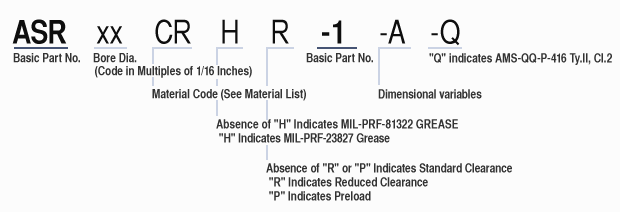

Part Number

Notes

1. Shaded area indicates AS Bearings to AS8914.
2. For load capacities on all-stainless bearing (CR-series) consult MinebeaMitsumi engineering department.
3. Plating: Exposed surfaces except bore.
