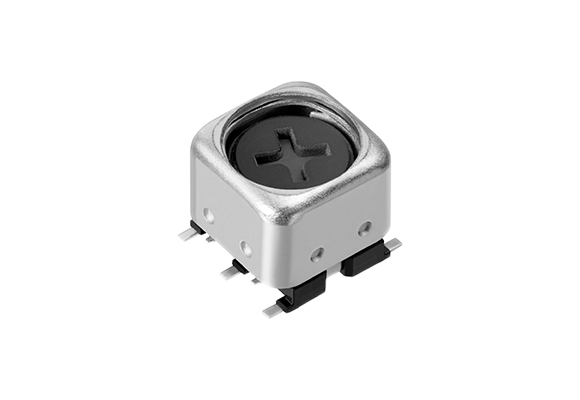

Transformer for Ultra Sonic Sensor KBP84 series
KBP84
Outline
This transformer is used in the driving circuit of the in-vehicle ultrasonic sensor (corner sensor, back sensor).

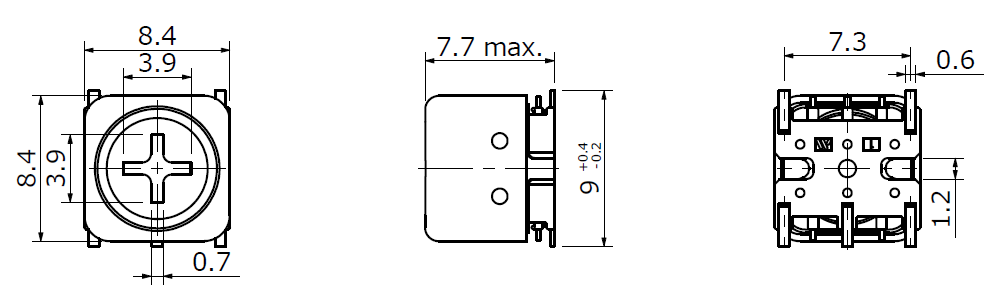

Dimensions
Dimensions
Unit
Specifications
| Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
Variable range of F lower limit [%] |
Variable range of F upper limit [%] |
Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
Internal capacitance |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 3.0 | 0.01 | 0.10 | 10 | 70 | -2 | 2 | -5 | 5 | - |
| Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
Variable range of F lower limit [%] |
|---|---|---|---|---|---|---|
| 0.1 | 3.0 | 0.01 | 0.10 | 10 | 70 | -2 |
| Variable range of F upper limit [%] |
Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
Internal capacitance |
|---|---|---|---|
| 2 | -5 | 5 | - |
