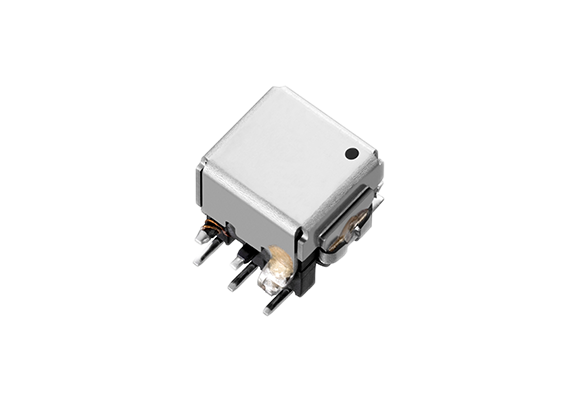

Transformer for Ultra Sonic Sensor TBE Series
TBE-736273NR
Outline
This transformer is used in the driving circuit of the in-vehicle ultrasonic sensor (corner sensor back sensor).
Features
1,A lineup of both variable and fixed structures
2,Variable type can adjust the inductance value and can absorb variations in microphones.
3,By improving the current value, we can cope with long-distance sensors and strengthen the external noise characteristics that are problematic.
Dimensions
Dimensions
Unit
mm
Specifications
| Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
|---|---|---|---|---|---|---|---|
| 0.1 | 4.0 | 0.01 | 0.10 | 15 | 70 | -8 | 8 |
| Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 4.0 | 0.01 | 0.10 | 15 | 70 |
| Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -8 | 8 |
Package Dimension
| Q'ty [pcs./reel] |
Tape Dimensions A [mm] |
Tape Dimensions B [mm] |
Tape Dimensions C a [mm] |
Tape Dimensions C b [mm] |
Tape Dimensions D a [mm] |
Tape Dimensions D b [mm] |
Tape Dimensions E a [mm] |
Tape Dimensions E b [mm] |
Tape Dimensions F a [mm] |
Tape Dimensions F b [mm] |
Tape Dimensions G [mm] |
Tape Dimensions H a [mm] |
Tape Dimensions H b [mm] |
Reel Dimensions I a [mm] |
Reel Dimensions I b [mm] |
Reel Dimensions J a [mm] |
Reel Dimensions J b [mm] |
Reel Dimensions K a [mm] |
Reel Dimensions K b [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 9.4 | 11.4 | 21.0 | 0.2 | 24 | 0.2 | 12 | 0.1 | 11.5 | 0.1 | 7.3 | 0.4 | 0.1 | φ 330 | φ 2 | 29.5 | 1 | 25.5 | 1 |
