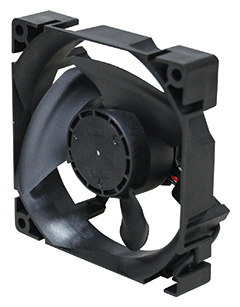

DC fan motors Refrigerator

09232JS for Evaporator

  • Refrigerator

General Specifications

Motor Protection:Auto Restart
Insulation Resistance:10M ohm or over with a DC500V Megger
Dielectric Withstand Voltage:AC700V 1s
Allowable Ambient Temperature Range :-40deg.C - +40deg.C (Operating)
-40deg.C - +70deg.C (Storage)
non-condensing environment

Specifications

Model Product No Nominal Voltage
[V]
Operating Voltage
lower limit
[V]
Operating Voltage
upper limit
[V]
Current
[A]
Input Power
[W]
Speed
[min-1]
Max. Air Flow
[m3/min]
Max. Air Flow
[CFM]
Max. Static Pressure
[Pa]
Max. Static Pressure
[In H2O]
Noise
[dB]
Mass
[g]

Rotation: Clockwise as seen from the label side
Airflow Outlet: Label side
*1: Average Values in Free Air

Outline

Panel Out-cuts

Characteristic Curves

Expected Life

-20deg.C 70,000 Hours *Failure Rate 10% (L10 Life)

Material

Casing:Plastic (Black) UL94V-0
Impeller:Plastic (Black) UL94V-0
Bearing:Sleeve
BearingLead Wire:UL1007 AWG24 +: Red, -: Black
