12038GE for Evaporator

Refrigerator

Energy-saving design specialized for refrigerator applications.
It is the latest design that can be used for ice-resistant and dust-proof structures according to the part of use.

General Specifications

Motor Protection:Auto Restart
Insulation Resistance:10M ohm or over with a DC500V Megger
Dielectric Withstand Voltage:AC700V 1s
Allowable Ambient Temperature Range :-40deg.C - +40deg.C (Operating)
-40deg.C - +60deg.C (Storage)
non-condensing environment

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Product No	Nominal Voltage [V]	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Current [A]	Input Power [W]	Speed [min-1]	Max. Air Flow [m3/min]	Max. Air Flow [CFM]	Max. Static Pressure [Pa]	Max. Static Pressure [In H2O]	Noise [dB]	Mass [g]
12038GE-12L-YA-D0	D0	12	7.0	13.2	0.15	1.80	1600	1.03	36.40	50.0	0.20	32.0	170.0
12038GE-12M-YA-D0	D0	12	7.0	13.2	0.21	2.52	1830	1.18	41.70	64.0	0.26	36.0	170.0
12038GE-12N-YA-D0	D0	12	7.0	13.2	0.24	2.88	1950	1.28	45.20	76.0	0.31	38.0	170.0

Rotation: Counterclockwise as seen from the label side
Airflow Outlet: Side Direction
*1: Average Values in Free Air
*2: With installation cover for measurement

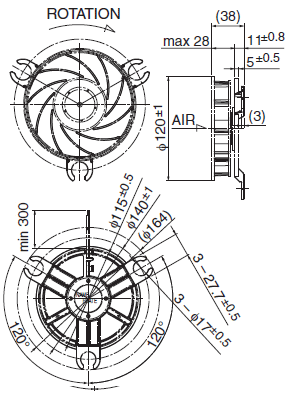

Outline

Measurement Condition*2

Characteristic Curves

-20deg.C 70,000 Hours *Failure Rate 10% (L10 Life)
Casing:Plastic (Black) UL94V-0
Impeller:Plastic (Black) UL94V-0
Bearing:Ball
BearingLead Wire:UL1007 AWG26 +: Red, -: Black
Associated Data
- PDF product catalog
