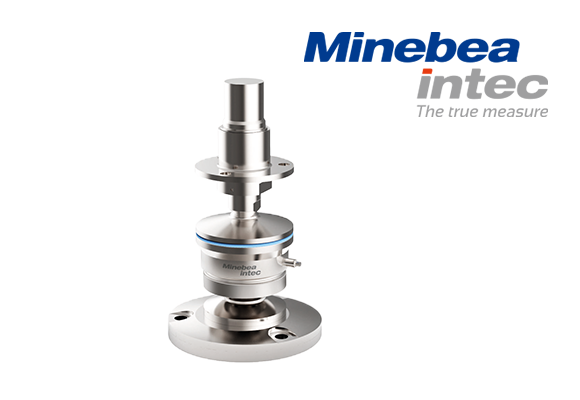

Features
■Hygienic all-in-one solution for reliable weighing of vessels
■Hygienic weighing module ensures efficient cleaning
■High degree of process reliability and precision thanks to the innovative side-force-resistant system
■Quick and easy commissioning due to smart add-on parts
■Durable, reliable weighing solution with excellent corrosion resistance
Specification
| Specification name | Specification contents | Specification contents2 |
|---|---|---|
| OIML Accuracy class | C3 | C6 |
| Accuracy class | 0.015%Emax | 0.015%Emax |
| Safe load limit | 150%Emax | 150%Emax |
| Destructive load | 300%Emax | 300%Emax |
| Rated output | 2.0mV/V | 2.0mV/V |
| Rated output tolerance | <0.07%Cn | <0.07%Cn |
| Zero balance | <1.5%Cn | <1.5%Cn |
| Reproducibility | <0.005%Cn | <0.005%Cn |
| Creep | <0.016%Cn | <0.016%Cn |
| Non-linearity | <0.01%Cn | <0.01%Cn |
| Hysteresis | <0.016%Cn | <0.016%Cn |
| Temperature effect on Zero | <0.01%Cn/10K | <0.01%Cn/10K |
| Temperature effect on Span | <0.01%Cn/10K | <0.01%Cn/10K |
| Input resistance | 1070Ω～1090Ω | 1070Ω～1090Ω |
| Rated output | 1009Ω～1011Ω | 1009Ω～1011Ω |
| Insulation resistance | >5000×10⁶Ω | >5000×10⁶Ω |
| Nominal supply voltage | 4～24V | 4～24V |
| Maximum supply voltage | 24 | 24 |
| Nominal ambient temperature range | -10℃～+40℃ | -10℃～+40℃ |
| Usable ambient temperature range | -40℃～+95℃ | -40℃～+95℃ |
| Storage ambient temperature range | -40℃～+95℃ | -40℃～+95℃ |
| Explosion-proof certification in Japan | 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0069/DEKRA) | 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0069/DEKRA) |
| Conforms to overseas explosion protection standards | 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga | 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga |
| Class of protection | IP68、IP69 | IP68、IP69 |
| Material of element | Stainless steel {1.4418 (DIN EN10088-3) | Stainless steel {1.4418 (DIN EN10088-3) |
| Cable specification | Thermoplastic Elastomer (TPE),4-core shield cable Length:12m/DiameterΦ5㎜ 4×0.35mm2 | Thermoplastic Elastomer (TPE),4-core shield cable Length:12m/DiameterΦ5㎜ 4×0.35mm2 |
| Wiring specification | Applied voltage +red/-blue Output signal +green/-ash | Applied voltage +red/-blue Output signal +green/-ash |
Table of P/N
| Parts No. | Rated Capacity [kgf] |
Weight [kg] |
Gross Weight [kg] |
Packaged Size(W) [cm] |
Packaged Size(L) [cm] |
Packaged Size(H) [cm] |
Specification sheet | Instruction Manual | Instruction manual 2 | Instruction manual 3 | Instruction Manual 4 | Instruction manual 5 | Instruction manual 6 | Instruction manual 7 | Movie |
|---|

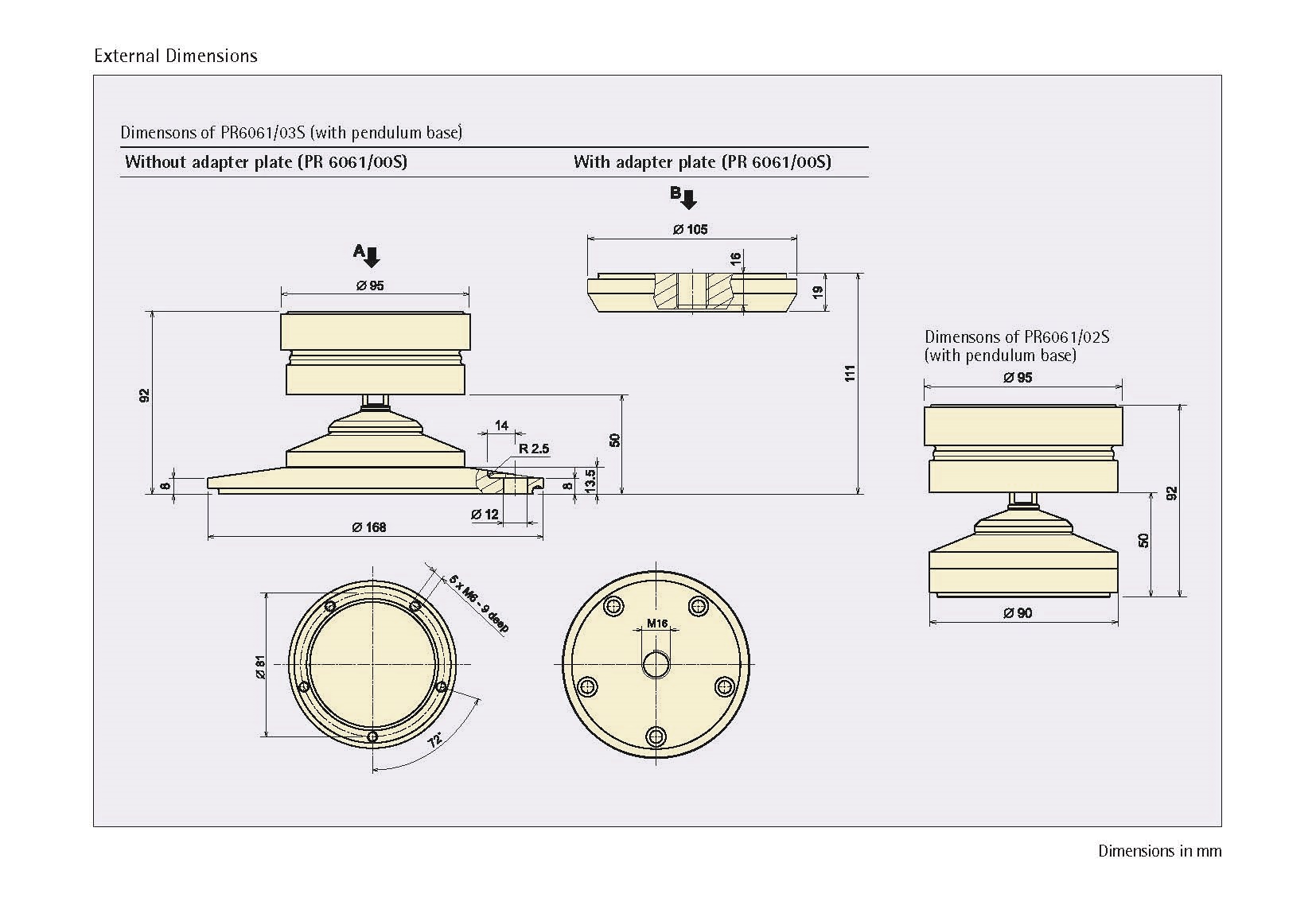

External view
