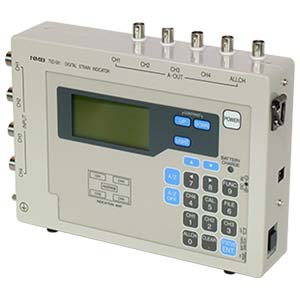

Digital indicator TSD - 591 for tie bar measurement system

【What is tie bar Gage Measurement System】

It is a tensionmeter using the strain gage, and the system to measure the clamping force and the opening force by installing to the tie bar such as an injection molding machine.

・ All of bonding the strain gage and additional workers to the tie rod are not necessary.
・ The stability of the temperature characteristic has been maintained by developing a special strain gage.
・ Please choose the mounting attachment device from 2 varieties for inspectin use that can be easily detached, or for control use with cheap cost and excellent long term stability.
・ Clamping force can be recorded nad controled by retrieving the data from the indicator to the PC.

【Applied example】

・ Balance adjustment
Aiming at the adjustment of the tightening force of the fittings to become even by measuring the difference of clamping force distributed to the tie bar.

・ Detect the overload to the tie bar.

・ Operation management
Clamping force is recorded by using the PC.

・ Control
Use for control the tightening operation.

Features

・Applicable to the balance adjustment of tightening force
・View four tie-bar's. (with voltage output)
・Actual load display via tie-bar gage's element.
(Diameter, Young ratio, etc.)
・4 hour internal battery.
・One touch automatic zero.

scroll

Specification name	Specification contents
Bridge power supply	2 VDC±0.02 VDC within 35 mA
Applicable transducer	Tie-bar gage (350 Ω type)
Measuring method	Displacement method
Temperature efficient	Zero ±0.2 μst/℃, Sensitivity ±0.01 %F.S./℃ (After 15 min. of warming up time)
Efficient due to time	Zero ±0.2 μst/8 h, Sensitivity ±0.01 %F.S./8 h (Temperature variation width within ±2 ℃)
A/D sampling	16 times/s
Display section	Dot matrix type liquidcrystal display (With back light LED type)
Function on setting program	No. of files 20 filesat maximum Setting contents 1. Young rate, 2. Diameter of tie-bar(Round bar) 3. Decimal point position, 4. Unit(kN, MN)
Tie bar analog output	Tie-bar output : 4, Tie-bar average output : 1 (BNC connector)
Output	0 V ~ ±2 V (Loadresistance 10 kΩ or less)
Accuracy	0.5 %F.S. (Resolution 1/2 000)
Measuring target	Tie-bar gage (350 Ω type)
Measurement set quantity	4 sets at maximum(one pair)
Measuring range	±15 000 μst
Resolution	1 μst
Accuracy	±0.1 %F.S.±1 digit
Operating temp./humidity range	Temperature 0 ℃~ 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	90 VAC to 264 VAC (when using AC adapter), 50/60 Hz
Power consumption	Approx. 8 VA
Battery drive time	Approx. 4 hours (when connecting 4 sets of tie bar gage)
Outline dimensions (WxHxD)	220 mm x 160 mm x 49 mm (excludes protruding parts)
Weight	Approx. 1.8 kg

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.

Outline dimension
(WxHxD)
[mm]

Weight(Approx. )
[kg]

TSD-591 220 x 160 x 49 (excludes protruding parts) 1.8
 Instruction manual 1 piece
 AC adapter 1 piece
(PW−024A−1Y160KU: Power Win Technology)
 Midget fuse(2 A) 1 piece
Instruction Manual
- No.EN294-1157
Specification
- No. EN382591
CAD
- tsd591.dxf
