Tie bar measurement system

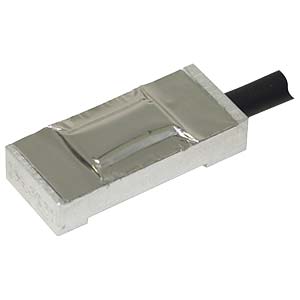

Tie bar gage UX010
Features
・ Use it by two-pieces set.
・ Temperature stability has improved by developing special Strain Gage.
・ Exchangeable without adjustment at the maintenance (Accuracy : within ±1 %)
・ Light weight and possible to install in a little space.
Specification
| Specification name | Specification contents |
|---|---|
| Gage factor | 2.0±1% |
| Gage resistance | 350 Ω±0.3 % |
| Non-linearity | 1 %F.S. |
| Hysteresis | 1 %F.S. |
| Repeatability | 1 %F.S. |
| Excitation, recommended | 8 V以下 |
| Excitation, maximum | 9 V |
| Measuring range | 0～1 000 μst |
| Operating temp. range | -10 ℃ ~ 75 ℃ |
| Self temp. compensation material | Carbon steel |
| Cable | φ4.7, 4-cores shielded 0.3 m cable directly attached, with connector at cable end. |
| Material | Alluminum alloy |
| Weight | UX010 : Approx. 45 g, UX010LB : Approx. 50g |
Table of P/N
| Parts No. | weight (Approx.) [g] |
|---|
Download
Specification
CAD
Options
- Cable for extension use
- ･ FA409-399-5M (Connector at cable end 5 m)
- ･ FA409-403-5M (Terminal lugs at cable end 5 m)
- Ring for gage (TGS)
- Guide for gage (TGR)
