Tie bar measurement system

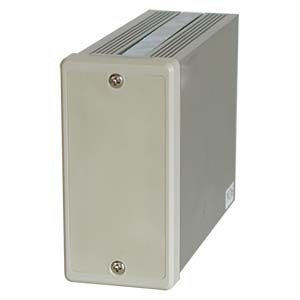

Transmitter CSA-591

Features

・ High response 1 kHz
・ Auto zero functions (Optional)

Specification

Specification name Specification contents
Bridge power supply 8 VDC±0.3 VDC within 30 mA
Applicable transducer 1 unit of tie-bar gage (350 Ω type 2 pieces a couple)
Input range ±300 μst ~ ±2 000 μst
Output voltage ±10 V output
Output load resistance 2 kΩ or more
Zero adjustment range Coarse adjustment Approx. ±10 000 μst adjustable by 16 steps rotary switch.
Fine adjustment Approx. ±3 000 μst adjustable by fine/coarse adjustment trimmer
Sensitivity adjustablerange Coarse adjustment Approx.±10 000 μst adjustable by 16 steps rotaryswitch.
Fine adjustment Adjustable by trimmer
Non-linearity 0.1 %F.S.
Temperature efficient Zero ±10 μV/℃ (Input conversion) , Sensitivity ±0.05 %F.S./℃
CALIB 300 μST±15 μst for 1 point
Frequency response range Approx. 100 Hz, or Approx.30 Hz
Operating temp./humidity range 0 ℃ ~ 50 ℃, 80 %RH or less ((Non condensing)
Power supply voltage 24 VDC (18 VDC ~ 36 VDC)
Power consumption Approx. 0.15 A (at 24 VDC)
Outline dimensions (WxHxD) 48 x 96 x 131 (mm) (excludes protruding parts)
Weight Approx. 0.5 kg

Table of P/N

Parts No. Outline dimension
(WxHxD)
[mm]
Weight(Approx. )
[kg]

Accessories

 Instruction manual 1 piece

Download

Instruction Manual

Specification

Options

  • Auto zero function
