Electromagnetic Clutches and Brakes

M-BR Type

  • Power supply equipment (built-in control contacts, over-excitation system)

Features

Overall View

Part Number

Specifications

Model Time of instantaneous high voltage
[s]
Input Voltage AC (50/60Hz)
[V]
Output voltage DC
[V]
Output current
[A]

Dimension

Model Size a
[mm]
Size b
[mm]
Size d
[mm]
Size A
[mm]
Size B
[mm]
Size C
[mm]
Size H
[mm]

Notes

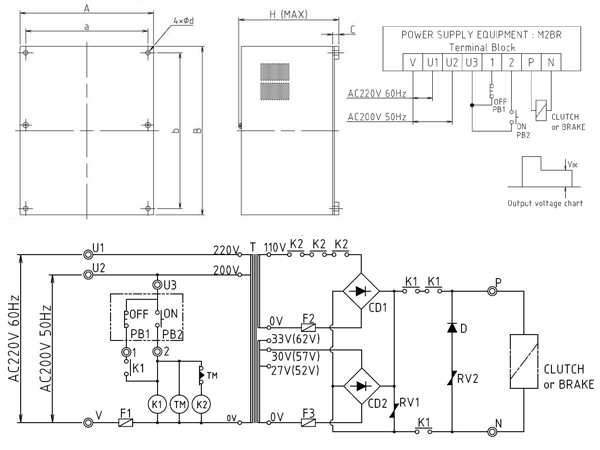

*Objects in long dashed double-short dashed lines are not included in this Power Supply Equipment.
*()are 48V type.
*◎are external connection terminal number.

T:transformer CD1,CD2:diode bridge K1,K2:magnetic contactor RV1,RV2:varistor F1,F2,F3:fuse TM:timer
range of input voltage:AC200/220V ±10% 50/60Hz
ambient temperature:-10deg .C~+40deg .C
over-excitation voltage:DC100V
