SB Type

Dry-type Single-disc Closed Electromagnetic Brake (Negative Actuated Type)

Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model

Weight
[kg]

Static friction torque
[N･m]

Voltage DC
[V]

Wattage (20℃)
[W]

SB-40 360.00 0.3 24 6

SB-50YB2 900.00 0.8 24 12

Model	Weight [kg]	Static friction torque [N･m]	Voltage DC [V]	Wattage (20℃) [W]
SB-40	360.00	0.3	24	6
SB-50YB2	900.00	0.8	24	12

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

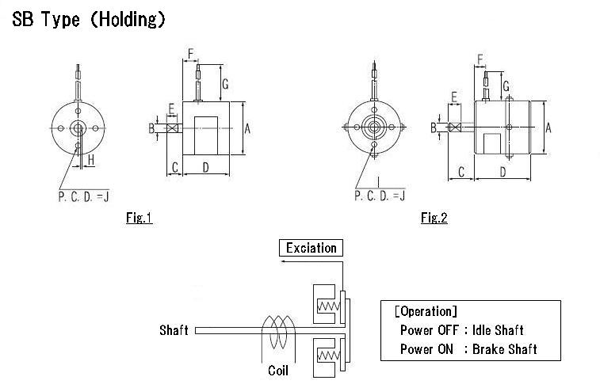

Model	Size A [mm]	Size B H7 [mm]	Size C [mm]	Size D [mm]	Size E [mm]	Size F [mm]	Size G [mm]	Size H [mm]	Size I [mm]	Size J [mm]
SB-40	ø44	+0 ø6 -0.012	15	39	12	13	300 min	0.5	M4 depth 4 (two sides)	ø30 ±0.1
SB-50YB2	ø59	+0 ø10 -0.015	30	60	25	13	150 min	0.5	M4 depth 4 (shaft-1)	ø40 ±0.2

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model

Moment of Inertia J
[×10-5kg･m2]

SB-40 0.4650

SB-50YB2 3.8000

Model	Moment of Inertia J [×10-5kg･m2]
SB-40	0.4650
SB-50YB2	3.8000
