TB / NB Type

Dry-type Negative Actuated type Electromagnetic Brake

Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

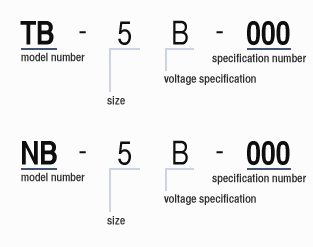

Model	Application	Max Speed [min-1]	Weight [kg]	Static friction torque [N･m]	Voltage DC [V]	Wattage (20℃) [W]
TB-5	For Holding	3000	0.20	0.6	24	5
TB-6	For Holding	3000	0.36	1	24	6.1
TB-8	For Holding	2800	0.65	2	24	10
NB-5	For Braking	3000	0.20	0.3	24	5
NB-6	For Braking	3000	0.36	0.5	24	6.1
NB-8	For Braking	2800	0.65	1	24	10

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

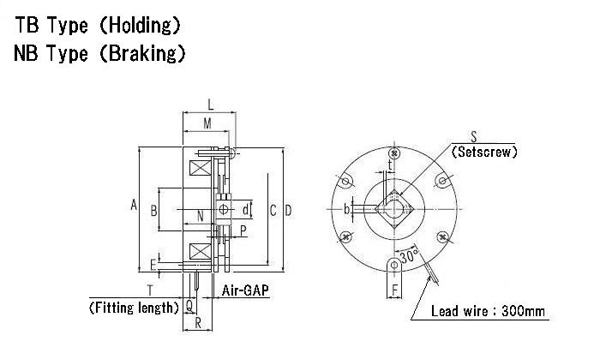

Model	Size Air-GAP [mm]	Size b JS9(spline width) [mm]	Size d H7(boss diameter) [mm]	Size t [mm]	Size A h9 [mm]	Size B [mm]	Size C [mm]	Size D [mm]	Size E [mm]	Size F [mm]	Size L [mm]	Size M [mm]	Size N [mm]	Size P [mm]	Size Q [mm]	Size R [mm]	Size S [mm]	Size T [mm]
TB-5	0.1～0.2	-	+0.012 ø6 -0	-	+0_x000D_ ø48 -0.062	ø14	ø42	ø48	3×ø2.7	7	25	22.5	16.5	6	7	15.0	2×M3	3
TB-6	0.15～0.2	-	+0.015 ø8 -0	-	+0_x000D_ ø60 -0.074	ø19	ø53	ø60	3×ø3.5	8	26	23	16.5	7.5	7	15.0	2×M3	3
TB-8	0.15～0.25	4±0.015	+0.015 ø10 -0	1.8	+0_x000D_ ø77 -0.074	ø20	ø68	ø77	3×ø4.5	9	29	25	18.5	8.5	7	15.0	2×M4	3
NB-5	0.1～0.25	-	+0.012 ø6 -0	-	+0_x000D_ ø48 -0.062	ø14	ø42	ø48	3×ø2.7	7	25	22.5	16.5	6	7	15.0	2×M3	3
NB-6	0.1～0.35	-	+0.015 ø8 -0	-	+0_x000D_ ø60 -0.074	ø19	ø53	ø60	3×ø3.5	8	26	23	16.5	6	7	15.0	2×M3	3
NB-8	0.15～0.4	4±0.015	+0.015 ø10 -0	1.8	+0_x000D_ ø77 -0.074	ø20	ø68	ø77	3×ø4.5	9	29	25	18.5	8.5	7	15.0	2×M4	3

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model

Moment of Inertia J
[×10-6kg･m2]

TB-5 1.5

TB-6 6.8

TB-8 20.8

NB-5 1.5

NB-6 6.8

NB-8 20.8
1.We can make 90 volts coil.
2.As to the backlash-less type, you can refer to us.

Model	Moment of Inertia J [×10-6kg･m2]
TB-5	1.5
TB-6	6.8
TB-8	20.8
NB-5	1.5
NB-6	6.8
NB-8	20.8
