Gripper

□25mm(3 fingers)

Features

- Adopts a unique spiral cam drive type (design registered), and highly reliable due to its simple structure.
- Rotation of the cam directly to the motor shaft.
- High mechanical efficiency using High-precision MinebeaMitsumi ball bearings.
- Smaller, lighter and more reliable than typical electric grippers due to it is not a complex mechanism using gears or worm gears.
- Small and lightweight design with cam mechanism enables multisided mounting of robot arms.

Specification

Stroke
[mm]
13
Grip force
lower limit
[N]
1.0
Grip force
upper limit
[N]
3.0
Repetitive positioning accuracy
[mm]
±0.02
Weight
[g]
210

Specifications are subject to change without notice.

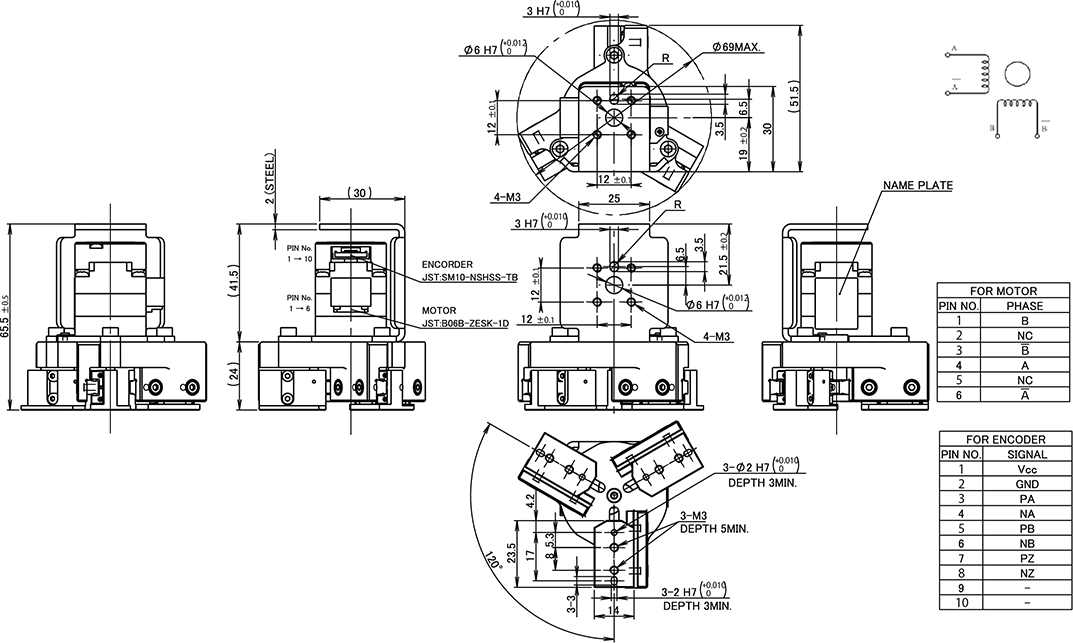

Overall View
