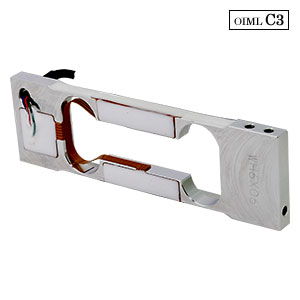

Low capacity for commercial scale BCL-＊-C3 OIML standard

Load cells to be applied to a electrical commercail scale.

Features

・Low capacity.
・Loading plate can be greater taken.
・OIML R60/C3 certified.

scroll

Specification name	Specification contents
OIML accuracy class	OIML R60 C3
Maximum scale interval	3,000
Rated capacity	300g～4.5kg
Minimum detected scale (Vmin)	0.05g～0.75g
Safe overload	200 %R.C.
Ultimate overload	300 %R.C.
Rated output	0.9 mV/V±0.1 mV/V
Non-linearity	0.015 %R.O.
Hysteresis	0.015 %R.O.
Repeatability	0.010 %R.O.
Creep	0.016 %R.O./30 min
Creep recovery	0.016 %R.O./30 min
Excitation, recommended	10 V or less
Excitation, maximum	15 V
Zero balance	±0.04 mV/V
Input resistance	400 Ω～450 Ω
Output resistance	345 Ω～355 Ω
Insulation resistance	2,000 MΩ 以上(DC50 V)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP40 or equivalent
Material of element	Alluminium alloy
Durability	1,000,000 times with rated load applied
Effect of eccentric load	■ BCL-300GM, 600GM ・Size of loading plate is 200 mm x 200 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.02 %R.O. applied with 1/2 of rated capacity at the position of 50 mm of eccentricity. ■ BCL-1.2K, 1.5K, 3K, 4.5K ・Size of loading plate is 300 mm x 300 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.02 %R.O. applied with 1/2 of rated capacity at the position of 75 mm of eccentricity.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [g]	Rated capacity [kg]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
BCL-300GM-C3	300		70	80	0.25	IP40 or equivalent	BCL-300GM-C3.STEP	bcl_a.dxf
BCL-600GM-C3	600		70	100	0.25	IP40 or equivalent	BCL-600GM-C3.STEP	bcl_a.dxf
BCL-1.2K-C3		1.2	70	200	0.25	IP40 or equivalent	BCL-1.2K-C3.STEP	bcl_a.dxf
BCL-1.5K-C3		1.5	70	210	0.25	IP40 or equivalent	BCL-1.5K-C3.STEP	bcl_a.dxf
BCL-3K-C3		3	70	400	0.25	IP40 or equivalent	BCL-3K-C3.STEP	bcl_a.dxf
BCL-4.5K-C3		4.5	70	450	0.25	IP40 or equivalent	BCL-4.5K-C3.STEP	bcl_a.dxf
