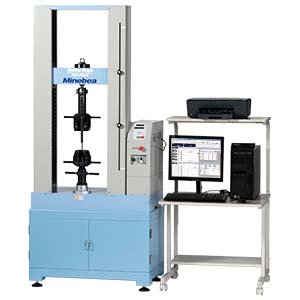

Technograph TGI series

In addition to being used to measure the elasticity, proof stress and strength of materials, such as metals and plastics, these machines also help evaluate the quality of assembling in destructive tests and manufacturing processes of products.

< Multifunctional, Easy-to-Use Tensile and Compression Testing Machines >
Featuring indicators and switches integrated on their front operation panel, the machines have an easy-to-use design. The also make test control from a PC, data analyzing and data summarization possible, through using data processing software.
Use of High-Precision Load Cells and Control Systems Made in-house.
Using know-how in high-precision load cells and instrument digital indicator made in-house, Minebea produces feature-rich, easy-to-use systems with a better safety device.

Features

New Desk-Top testing mashine with high accuracy, high performance, and simple operation.
・High Accuracy
Accuracy of ±1 % (JIS Class 1) of the indicated value from 1/1 to 1/1000 of load cell capacity, accurac of ±0.5% (JIS Class 0.5) is available as an option.
Cross head speed range of 0.000 5 mm/min to 1 000mm/min (TGI-50kN to TGI-250kN : 0.000 5mm/min to 500mm/min).
Accuracy of cross head speed is ±0.1 % of speed setting over entire speed range.
・High performance with simple operatin.
Automatic load cell span adjustment, One-push auto zero, Auto return to test start position (No overshooting), Test condition registration, Manual 3 level speed setting (freely settable), Analog output of test force and position, and support for continuous repeated tensile and compression testing.
・Increased accuracy, with servo motor resolution four times greater than previous models. Position control is greatly improved, allowing steady operation in low speed ranges.
・Increased return speed
The return speed can be set as desired between 0.1 mm/min and 1500 mm/min (up to 10kN) and between 0.1 mm/min and 750mm/min (for 50kN and over).

scroll

Specification name	Specification contents
Maximum test force	250 kN, 100 kN, 50 kN, 10 kN, 5 kN, 1 kN, 500 N, 200 N
Test space	Tensile and Compression testing beneath the movable crosshead. (An optional model is available allowing tensile testing above the movable crosshead.)
Loading method	Constant-speed strain loading with high-accuracy AC servo motor and backlash-free precision ball screw
Crosshead speed/permissible test force	Within the max. test force over the entire speed ranges.
Test force range	Choice of ×1 (AUTO) and ×100 if load cell rated output is 3 mV/V; ×1 (AUTO) if load cell rated capacity is 20 N or less. When ×1 (AUTO) is set: test force increase/decrease, full scale display, and automatic switching of decimal point position and display units
Test force measuring accuracy	±1% of indicated value in range 1/1 to 1/500 of load cell capacity for both tensile and compression (A high-accuracy model with ±0.5% of indicated value is available as an option.)
Applicable standard	JIS B 7721 Class 1 or Class 0.5 and ISO7500-1 Class 1 or Class 0.5
Crosshead speed accuracy	±0.5% of speed setting or ±0.0025 mm/min, whichever is larger
Speed setting method	Manual: Numeric input via control panel (0.1, 0.5, 1 to 500 set in 1 mm/min increments) When using data processing software: Automatically set in accordance with test conditions created.
Manual speed	3 speeds (HIGH/MIDDLE/LOW); each speed freely settable
Test mode	Single and cycle (combination of test force and position) Optional: Creep, stress relaxation, automatic loading
Display	5-digit digital display ±99,999, able to display peak or rupture test force, position: 5 1/2 digital display ±1999,999
Standard functions	Load Cell model and capacity: Auto adjust Load Cell span: Auto set for tension/compression. Load Cell Zero point: One push Position reset: One push Sample rupture detection: Selectable from stop, reverse and ignore Rupture sensitivity: Set as desired to 0.04 % to 99.00 % of test force Test condition registration function: 10 conditions Test force & position analog output: 0 VDC to 5 VDC (with scaling function) Interface: Conforms to USB 2.0/1.1 standard (B-type connector)
Options	Chuck adapter: Lower chuck mounting adapter for tensile testing Load Cell: for tension/compression type (with universal joint, connect pin, and compression plate) for tensile type (with universal joint and connecting pin) for compression type (with compression plate) Testing: Former jig is attachable. Displacement measuring function: Strain input type Test machine stand: Data processing software: Single, Cycle, Control
Power supply voltage, Frequency	TGI-250kN~TGI-10kN:3-phase 200 VAC±20 VAC, 50/60 Hz TGI-5kN~TGI-200N: Single phase 100 VAC ~ 115 VAC, 50/60 Hz
Operating temperature /humidity range	Temperature 5 ℃ ~ 40 ℃, Humidity 20 % ~ 80 %RH (Non condensing)
Notes	Note 1: The test force measurement range varies depending on the rated capacity of the load cell used. Note 2: Testing machines are available with large effective width for models with maximum test force of 50 kN, 100 kN or 250 kN. Note 3: Models are available with extended stroke. Note 4: Tensile testing stroke is for maximum test force capacity load cell with the (optional) chuck mounted.
