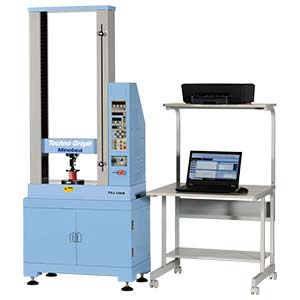

Features
Multiple function and high accuracy combined
with simple setup procedures for increased testing efficiency
・ Lineup of nine models available (500 N, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, 250 kN) to suit test force requirements.
・ The front control panel is designed with displays and switches arranged together for ease of use.
・ Simply connect a load cell with automatic calibration and automatic zero resetting functions, eliminating the need for adjustment.
・ Supports accuracy of ±1% of indicated value (JIS Class 1) or ±0.5% of indicated value (JIS Class 0.5) in range 1/1 to 1/500 of load cell capacity.
・ Three manual speeds for position setting before testing, each freely settable.
・ Compact, lightweight design eliminates constraints on installation site.
Specification
Specification name | Specification contents |
---|---|
Maximum test force | 250 kN, 100 kN, 50 kN, 10 kN, 5 kN, 2 kN, 1 kN, 500 N, 200 N |
Test space | Tensile and Compression testing beneath the movable crosshead. (An optional model is available allowing tensile testing above the movable crosshead.) |
Loading method | Constant-speed strain loading with high-accuracy AC servo motor and backlash-free precision ball screw |
Crosshead speed/permissible test force | Within the max. test force over the entire speed range. |
Test force range | Choice of ×1 (AUTO) and ×100 if load cell rated output is 3 mV/V; ×1 (AUTO) if load cell rated capacity is 20 N or less. When ×1 (AUTO) is set: test force increase/decrease, full scale display, and automatic switching of decimal point position and display units |
Test force measuring accuracy | ±1% of indicated value in range 1/1 to 1/500 of load cell capacity for both tensile and compression (A high-accuracy model with ±0.5% of indicated value is available as an option.) |
Applicable standard | JIS B 7721 Class 1 or Class 0.5 and ISO7500-1 Class 1 or Class 「0.5」 |
Crosshead speed accuracy | ±0.1 % over entire speed range (Excluding custom and manual speed) |
Speed setting method | Preset speed Key operation, 1-step up/down, and [x10] / [x1/10] selection Custom speed Custom setting in 0.1 mm/min increments Manual speed Three speeds (HIGH/MIDDLE/LOW); each speed freely settable) |
Test mode | Single and cycle (Creep, stress relaxation optional). |
Test force/crosshead position display | Test force: 5-digit digital display. Movable crosshead position: 5 1/2-digit digital display ±1 999.99 |
Crosshead position display accuracy | ±0.1 % of indicated value. (±0.01 mm up to ±10 mm) |
Cycle count display | 4-digit digital display, selection display on position display |
Cycle control *5) | Position setting, test force setting, and combined setting possible. With cycle number preset function. |
Return function | Test speed or rapid return speed (customer setting) can be selected. With zero-overshoot function (stops at position [0].) |
Sample rupture detection function | Sensitivity can be set as desired. (Can be set to stop movable crosshead, reverse, or ignore on detection.) |
Test force amplifier | Measuring range : Seven steps of x1, x2, x5, x10, x20, x50 or x100 times Auto zero : Provided (2 modes of all range auto zero and setting range auto zero.) Calibration : Auto calibration by data registration |
Power supply voltage, Frequency | TGE-250kN~TGE-10kN:3-phase 200 ACV±20 V, 50/60 Hz TGE-5kN~TGE-200N: Single phase 100 VAC ~ 115 VAC, 50/60 Hz |
Operating temperature /humidity range | Temperature 5 ℃ ~ 40 ℃, Humidity 20 % ~ 80 %RH (Non condensing) |
Notes | Note 1: The test force measurement range varies depending on the rated capacity of the load cell used. Note 2: Testing machines are available with large effective width for models with maximum test force of 50 kN, 100 kN or 250 kN. Note 3: Models are available with extended stroke. Note 4: Tensile testing stroke is for maximum test force capacity load cell with the (optional) chuck mounted. |
