Resolver (Angle sensor) type

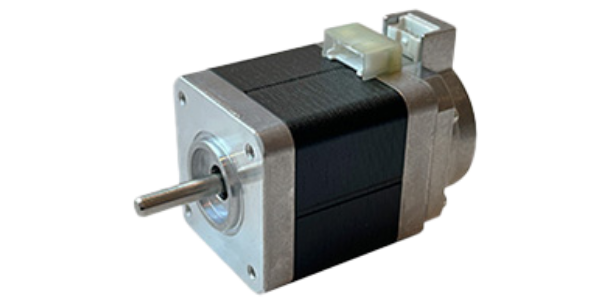

This product is equipped with a resolver (Angle sensor) along with the stepping motor, enabling servo control of the motor. We plan to expand the scope of application while maximizing the available torque from the motor.

Download


Introducing stepping motor control that enables servo control.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Outer Diameter
[mm]

Step Angle
upper limit
[°]

PDF
R17PM 42.0 1.80 PDF
R23KM 56.4 1.80 PDF
