PG20S-D20

This newly developed geared motor uses a molded planetary gearbox.
Large reduction ratios can be realized in a compact size, along with high output and high resolution.
The controllability that characterizes our PM motors has also been maintained,
allowing for simplification of the system structure and easy handling.

scroll

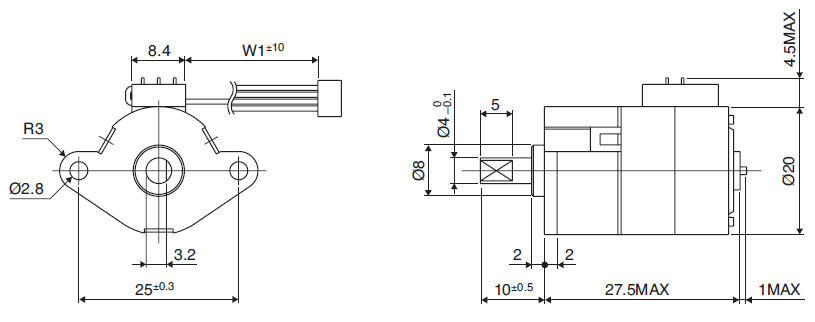

Outer Diameter [mm]	Length [mm]	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Drive Method	Resistance [Ω]	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
20.0	27.50	Nd-Fe-B bonded magnet (MS70)	100	500	2-2 phase	120.0	Class E（Except lead wire）	0	50	-30	80	20	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

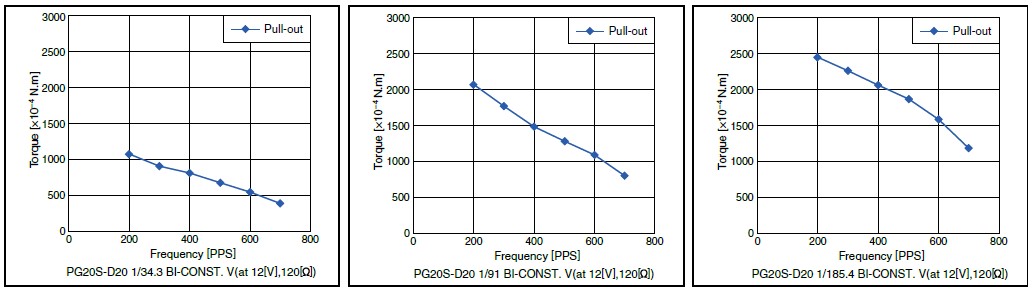

Drive Circuit	Drive Voltage [V]	Gear Ratio [1:X]	Step Angle [°]
BIPOLAR CONST. VOLT.	12	1:34.3	0.524
BIPOLAR CONST. VOLT.	12	1:91	0.197
BIPOLAR CONST. VOLT.	12	1:185.4	0.097

Home electric appliances:Air-conditioners
OA Equipment:Printers / Photocopiers
Power Tools:Drills / Drivers
