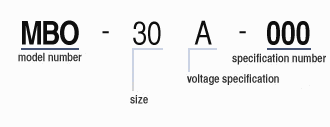

MBO Type
Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.
-
-
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Weight
[kg]Static friction torque
[N･m]Voltage DC
[V]Wattage (20℃)
[W]MBO-30 100.00 0.25 12, 24 4.4 MBO-40 180.00 0.8 12, 24 6 MBO-45 280.00 1 12, 24 6 MBO-50 400.00 2 12, 24 6 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Size Air-GAP
[mm]Size A
[mm]Size B
[mm]Size C H7
[mm]Size D H7
[mm]Size E
[mm]Size F
[mm]Size G
[mm]Size H
[mm]Size I
[mm]Size J
[mm]Size K
[mm]Size L
[mm]Size M
[mm]Size N (P.C.D.)
[mm]Size O
[mm]Size P
[mm]Size Q

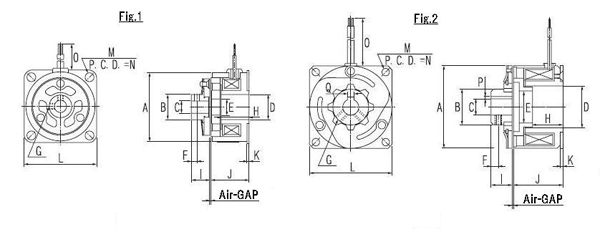

[mm]MBO-30 0.3 ø33 ø12 +0.012
ø6 -0+0.018
ø12 -0ø8 3 2×M3 13.5 9 18.1 1 □35 4×ø4 ø40 ±0.3 150 min - - MBO-40 0.3 ø40 ø13 +0.012
ø6 -0+0.018
ø15 -0ø10 3.5 2×M3 17 10 23 1.6 □45 4×ø4.5 ø52 ±0.3 150 min - - MBO-45 0.3 ø46 ø20 +0.015
ø8 -0+0.018
ø12 -0ø18.5 4 2×M4 15.5 12 27.5 1.5 □46 4×ø4.5 ø56 ±0.5 250 min 0.9 2.5 MBO-50 0.3 ø53 ø22 +0.015
ø10 -0+0.021
ø26 -0ø20 5 2×M4 19 14 30.5 1.5 □53 4×ø4.5 ø63 ±0.5 250 min 1.5 4 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Moment of Inertia J
[×10-5kg･m2]MBO-30 0.1300 MBO-40 0.3500 MBO-45 1.1300 MBO-50 2.5000 -
1.As for the static friction torque, it is values when the air-gap was set to 0.3.
2.The size "G" is the hexagon socket set screw.
