PM stepping motors Standard type

M15SP-1N

  • Discontinued Products

Alternative

Appearance

Reference Characteristics

Outer Diameter
[mm]
Length
[mm]
Step No. Magnet Material Insulation Resistance (M)
[Ω/min]
Dielectric Strength (AC)
[V/min]
Step Angle
[deg]
Drive Method Class of Insulation Operating Temp.
lower limit
[deg.C]
Operating Temp.
upper limit
[deg.C]
Storage Temp.
lower limit
[deg.C]
Storage Temp.
upper limit
[deg.C]
Operating Hum. RH
lower limit
[%]
Operating Hum. RH
upper limit
[%]
15.0 10.50 20 Neodymium bonded magnet 100 500 18.00 2-2 phase CLASS E 0 50 -20 70 5 90

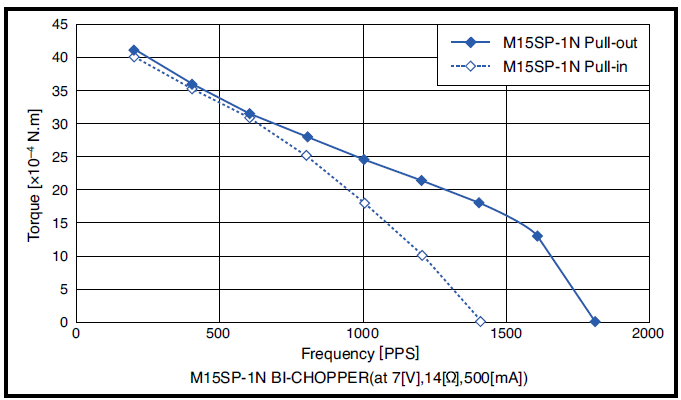

Torque Characteristic

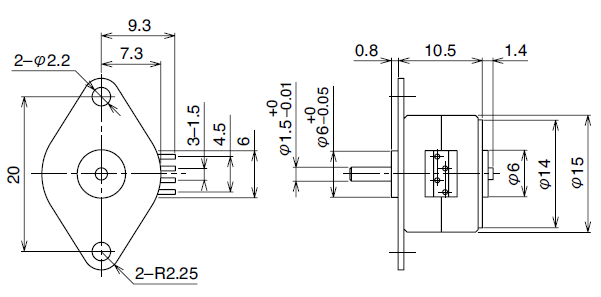

Overall View

Download
