Characteristic
Reference Characteristics
| Rated Voltage [DC V] |
Used Voltage Range upper limit [DC V] |
Used Voltage Range lower limit [DC V] |
Outer Diameter [mm] |
Length [mm] |
Step No. | Step Angle [deg] |
Holding Torque | Pull-out Torque | Pull-in Torque | Max. Pull-out Pulse Rate [pps] |
Max. Pull-in Pulse Rate [pps] |
Rated Current/Phase(Peak) [mA] |
Drive Method | Resistance/Phase [Ω] |
Resistance Note | Class of Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 21.6 | 26.4 | 35.0 | 15.80 | 96 | 3.75 | 35mN･m | 26.3mN･m/1000pps | 29mN･m/600pps | 1600 | 1200 | 600 | 2-2 Phase excitation (Bipolar driving) | 13.0 | ±10% | Class E insulation |

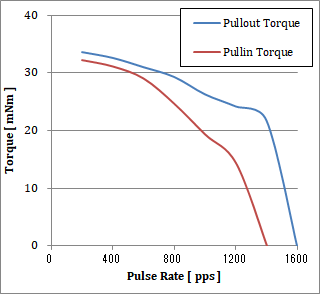

Torque Characteristic

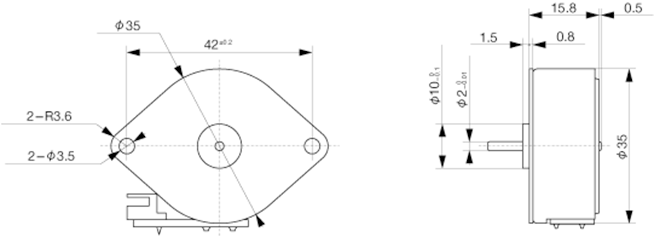

Overall View
Download
Catalog
