Overview
3 Phase outer rotor type DC Brushless Motor
Bearing : Can select Oil retaining bearing or Ball bearing
Connection : On request basis
Detent torque : It is possible to adjust the detent torque upon request.
Interface : Coil terminal
Input & Output of Hall sensor or Hall IC
Circuit : Can respond to the mounting of the drive IC
Shaft : It is possible to respond to the change of length, the shape of D-cut, the addition of the gear, etc..
Shaft output direction can be selected up and down.

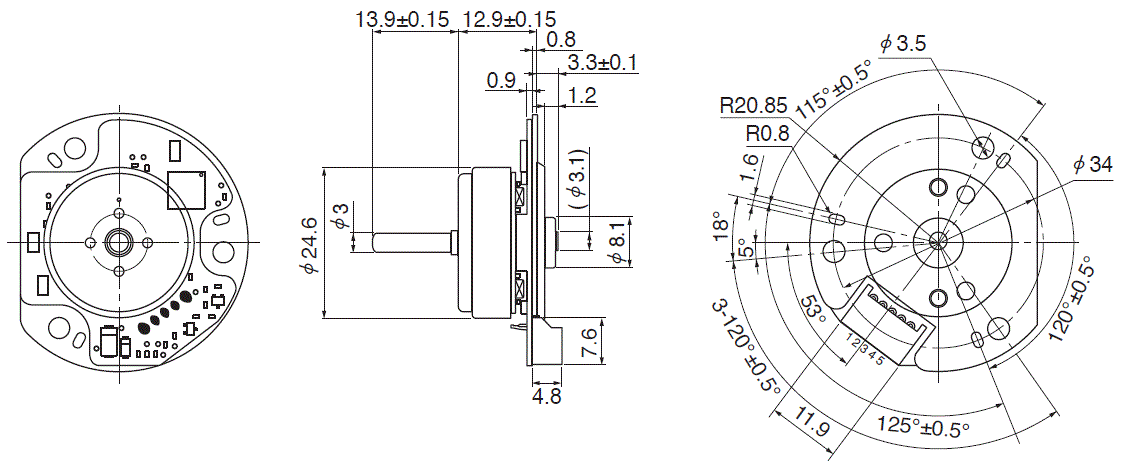

Overall View
Specification
| Outer Diameter [mm] |
No load speed [r/min] |
Starting torquey [%] |
Speed at maximal efficiency [r/min] |
Continuous operation range |
|---|---|---|---|---|
| 24.6 | 24000 | 67(at 10mN・m) | 20000 | <2A rms |
* Major characteristic parameters at 12V.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

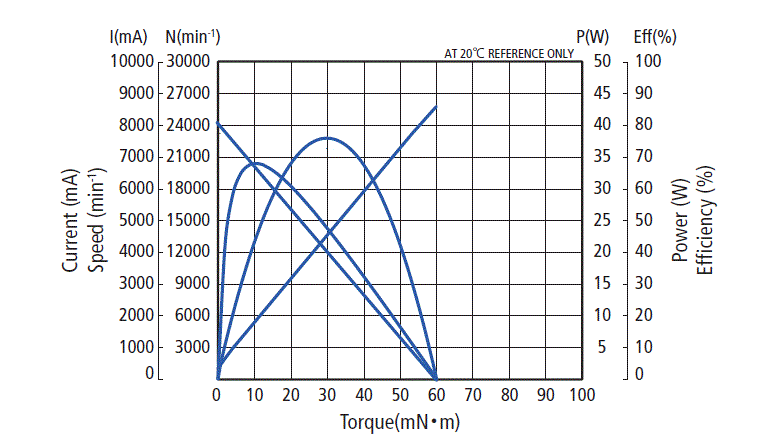

Property diagram
