DNA10B (High voltage type) for home appliances

These motors are used in mechanical driving for photoconductive drums, paper feeds, and toners in copiers and other OA equipment. Small-size, high-efficiency technology helps make equipment more compact and save more energy.
Nd Mg: Neodymium magnets type
Fe Mg: Ferrite magnet type
With plate, with plate and cover type are available for "for home appliance" models. Prease refer to the PDF.

Overview

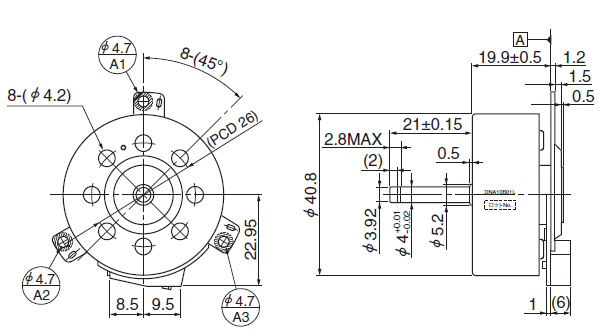

dia. 41 × L23 DC Brushless motor outer rotor type
Ⓑ dia. 92 × L45 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection

Operating Voltage Min. [VDC]	21.6
Operating Voltage Nom. [VDC]	24
Operating Voltage Max. [VDC]	26.4
Operating Speed Nom. [min-1]	19000
Continuous Rating Power Nom. [W]	135
Operating Temperature Min. [deg.C]	0
Operating Temperature Max. [deg.C]	40
