Power brushless motors

DNQ14MF (Fe Mg)

Overview

dia. 61 × L33 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection
The gear machined output, shaft type is available as an option.

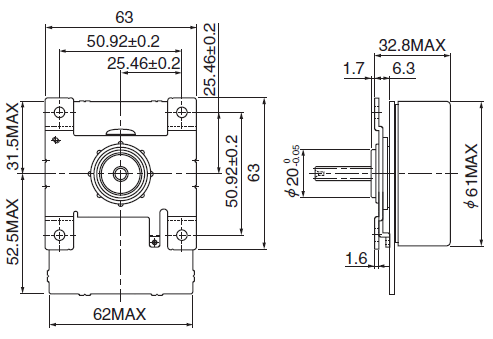

Overall View

Specifications

Operating Voltage
Min.
[VDC]
21.6
Operating Voltage
Nom.
[VDC]
24
Operating Voltage
Max.
[VDC]
26.4
Operating Speed
Min.
[min-1]
600
Operating Speed
Max.
[min-1]
3000
Continuous Rating Power
Max.
[W]
40
Rotor Inertia (Reference Value)
Nom.
[g・cm2]
340
Operating Temperature
Min.
[deg.C]
0
Operating Temperature
Nom.
[deg.C]
20
Operating Temperature
Max.
[deg.C]
50
Operating Humidity
Min.
[%RH]
15
Operating Humidity
Max.
[%RH]
90
Motor Weight
Max.
[g]
340

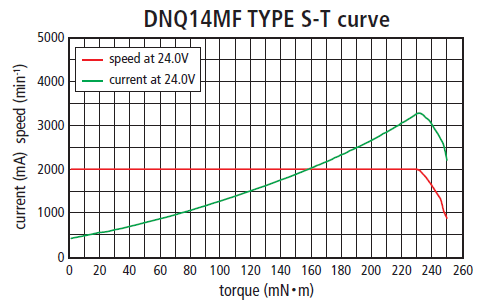

Property
