MC Type

Dry-type Single-disc Closed Electromagnetic Clutch

Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Weight [kg]	Static friction torque [N･m]	Voltage DC [V]	Wattage (20℃) [W]
MC-20	70.00	0.08	12, 24	2
MC-30	170.00	0.25	12, 24	4.4
MC-40	340.00	0.8	12, 24	6
MC-50	800.00	2	12, 24	6

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

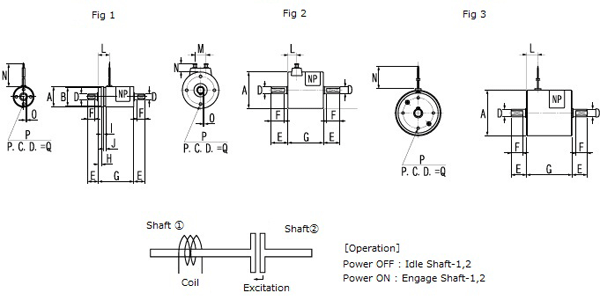

Model	Size A [mm]	Size B [mm]	Size D h7(shaft diameter) [mm]	Size E [mm]	Size F [mm]	Size G [mm]	Size H [mm]	Size I [mm]	Size J [mm]	Size L [mm]	Size M [mm]	Size N [mm]	Size O [mm]	Size P (two sides) [mm]	Size Q (P.C.D.) [mm]
MC-20	ø20	+0 ø18 -0.05	+0 ø5 -0.012	10	7	35	3	2	2	12	-	200 min	0.5	M2.6 深さ4(シャフト①側)	ø14 ±0.2
MC-30	ø33	-	+0 ø6 -0.012	15	12	32	-	-	-	8	10	10 max	0.5	M3 深さ4	ø25 ±0.2
MC-40	ø44	-	+0 ø6 -0.012	15	12	39	-	-	-	13	12	10 max	0.5	M4 深さ4	ø30 ±0.2
MC-50	ø60	-	+0 ø10 -0.015	20	15	60	-	-	-	15	-	250 min	1	M4 深さ6	ø40 ±0.2

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Moment of Inertia J Shaft-1 [×10-5kg･m2]	Moment of Inertia J Shaft-2 [×10-5kg･m2]
MC-20	0.0325	0.0125
MC-30	0.1700	0.1100
MC-40	0.4600	0.4100
MC-50	2.7500	2.1000
