ZHA Type
Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.
-
-
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Max Speed
[min-1]Weight
[kg]Torque
[N･m]Coil 20deg.C Voltage DC
[V]Coil 20deg.C Wattage
[W]Coil 20deg.C Current
[A]Air Gap Clutch Open
[mm]ZHA16 4800 23.00 160 24 118.0 4.92 0.5 ZHA25 4200 29.00 250 24 130.0 5.43 0.5 ZHA40 3800 37.00 400 24 139.0 5.80 0.6 ZHA63 3400 49.00 630 24 158.6 6.61 0.6 ZHA100 3000 66.00 1000 110 189.0 1.72 0.6 ZHA160 2700 90.00 1600 110 253.0 2.30 0.7 ZHA250 2400 124.00 2500 110 305.0 2.77 0.7 ZHA400 2200 170.00 4000 110 366.0 3.33 0.7 ZHA630 1900 232.00 6300 110 402.0 3.66 0.8 ZHA1000 1600 334.00 10000 110 502.0 4.57 0.8 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll

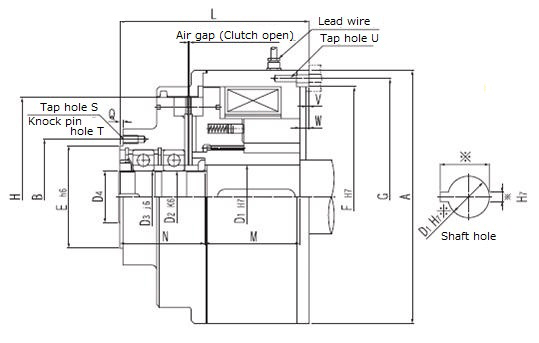

Model
Diameter A
[mm]Diameter B
[mm]Diameter D1 max H7
[mm]Diameter D2 max
[mm]Diameter D3 max
[mm]Diameter E h6
[mm]Diameter F H7
[mm]Diameter G
[mm]Diameter H
[mm]Diameter S (Screw hole)
[mm]Diameter T (Dowel pin hole)
[mm]Diameter U (Screw hole)
[mm]ZHA16 200 90.0 45 35 35 78 170 188 150 6-M8 3-ø8 4-M6 ZHA25 215 98.0 50 40 40 85 185 203 170 6-M8 3-ø8 4-M8 ZHA40 240 110.0 60 50 50 98 210 225 190 8-M8 4-ø8 4-M8 ZHA63 265 132.0 70 60 60 120 230 248 210 12-M8 6-ø8 6-M8 ZHA100 295 145.0 80 65 65 130 250 275 230 8-M10 4-ø10 4-M10 ZHA160 330 156.0 90 75 75 140 290 310 260 8-M12 4-ø12 6-M10 ZHA250 365 176.0 100 85 85 160 310 340 290 12-M12 6-ø12 6-M12 ZHA400 415 200.0 110 95 95 180 350 385 330 8-M16 4-ø16 8-M12 ZHA630 465 230.0 130 110 110 210 400 435 380 12-M16 6-ø16 6-M16 ZHA1000 525 270.0 150 130 130 245 465 495 440 8-M20 4-ø20 6-M16 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Length L
[mm]Length M
[mm]Length N
[mm]Length Q
[mm]Length V
[mm]Length W
[mm]ZHA16 156.0 80.0 70.0 2.0 2.0 4 ZHA25 166.0 85.0 75.0 2.0 2.0 4 ZHA40 179.0 90.0 85.0 3.0 3.0 6 ZHA63 189.0 95.0 85.0 3.0 3.0 6 ZHA100 214.0 110.0 95.0 3.0 3.0 6 ZHA160 242.0 120.0 110.0 4.0 4.0 8 ZHA250 252.0 125.0 117.0 4.0 4.0 8 ZHA400 280.0 135.0 135.0 5.0 5.0 10 ZHA630 305.0 145.0 150.0 5.0 5.0 10 ZHA1000 340.0 155.0 175.0 5.0 5.0 10 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Moment of Inertia J Armature Side
[kg･m2]Moment of Inertia J Outer boss Side
[kg･m2]ZHA16 0.0275 0.0125 ZHA25 0.0475 0.0225 ZHA40 0.0725 0.0325 ZHA63 0.1200 0.0550 ZHA100 0.1950 0.0900 ZHA160 0.3500 0.1500 ZHA250 0.6500 0.2250 ZHA400 1.0750 0.4000 ZHA630 1.9500 0.8250 ZHA1000 3.6000 1.8250 -
1.Please indicate dimension of the part marked (If nothing is indicated, product with prepared hole shall be delivered).
2.In case quick response speed is required, power unit of over excitation type shall be utilized. (Which shall be ordered separately with reference to electromagnetic clutch / electric component for brake.)
