Brushless inner rotor motors
DIX42(10W) for Home Appliances
Overview
dia. 42 × L41 DC Brushless motor inner rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in
Low Noise
Compact, Light Weight and High Output
High Efficiency
Low Inertia
Overcurrent and Locked Rotor Protection

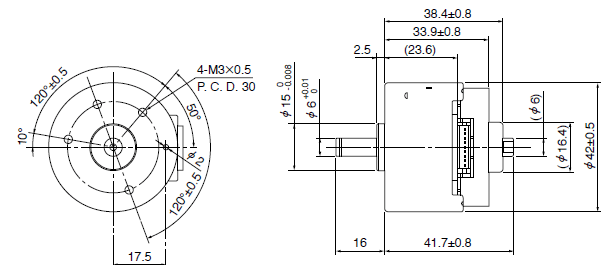

Overall View
Major Characteristic Parameters
| Operating Voltage (for Motor) Min. [VDC] |
21.6 |
|---|---|
| Operating Voltage (for Motor) Nom. [VDC] |
24 |
| Operating Voltage (for Motor) Max. [VDC] |
26.4 |
| Operating Voltage (for Circuit) Min. [VDC] |
4.5 |
| Operating Voltage (for Circuit) Nom. [VDC] |
5 |
| Operating Voltage (for Circuit) Max. [VDC] |
5.5 |
| Continuous Rating Power Max. [W] |
6 |
| Short Time Rating Power Max. [W] |
10 |
| Rotor Inertia (Reference Value) Nom. [g・cm2] |
18 |
| Operating Temperature Min. [deg.C] |
0 |
| Operating Temperature Nom. [deg.C] |
20 |
| Operating Temperature Max. [deg.C] |
50 |
| Operating Humidity Min. [%RH] |
15 |
| Operating Humidity Max. [%RH] |
90 |
| Usable Input PWM Duty Min. [%] |
10 |
| Usable Input PWM Duty Max. [%] |
100 |
| Motor Weight Max. [g] |
150 |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

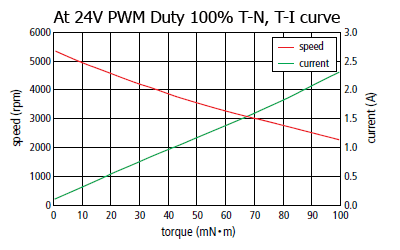

Property
