Overview

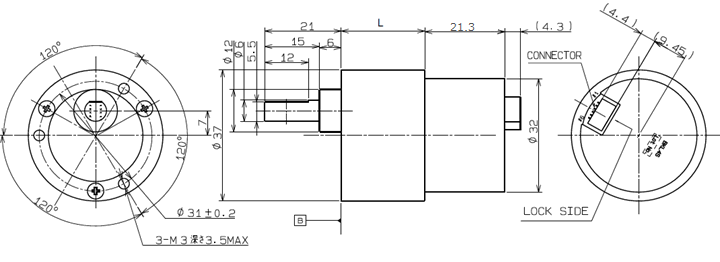

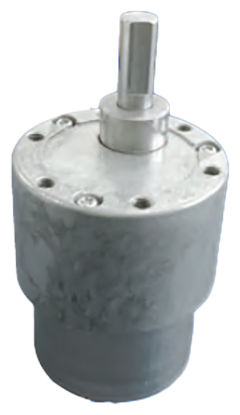

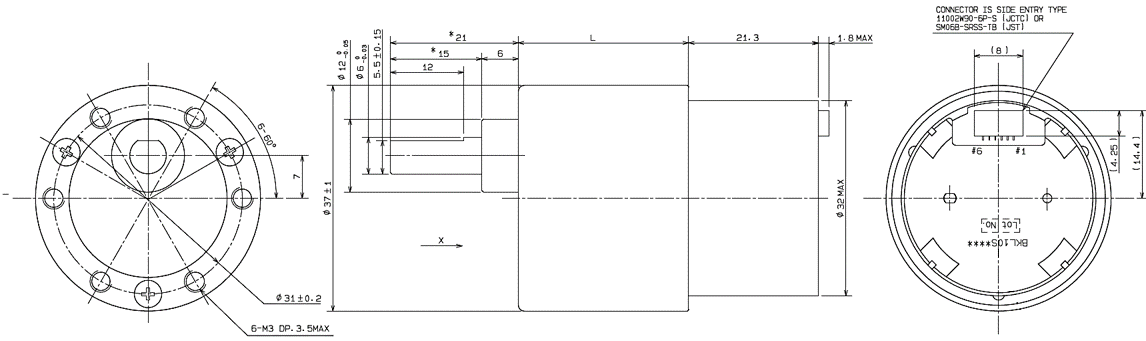

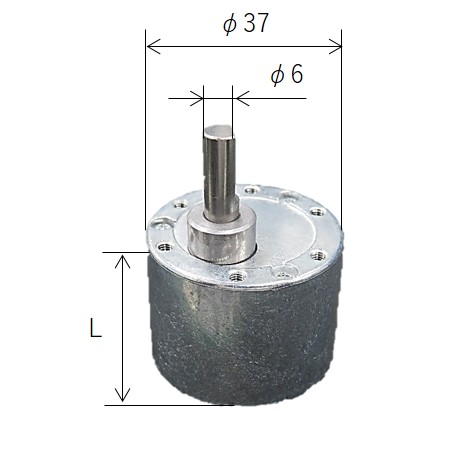

Overall View
Specification
| Gear Ratio | Gear Type | Gear Material | Gear Step | Gear Box Length L1 [mm] |
Total Length L1+motor [mm] |
Rated Voltage [V] |
No Load Speed [r/min] |
No Load Current [mA] |
Rated Load Torque [mN・m] |
Rated Load Speed [r/min] |
Rated Load Current [mA] |
Max Rated Load torque [mN・m] |
Max Instant Torque [mN・m] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/10 | Spur | Metal | 1 | 20.5 | 41.8 | 12 | 320 | 80 | 54 | 296 | 260 | 98 | 98 |
| 1/25 | Spur | Metal | 2 | 23 | 44.3 | 12 | 128 | 80 | 122 | 118 | 260 | 196 | 196 |
| 1/60 | Spur | Metal | 3 | 25 | 46.3 | 12 | 53 | 80 | 262 | 49 | 260 | 294 | 441 |
| 1/100 | Spur | Metal | 4 | 25 | 46.3 | 12 | 32 | 80 | 294 | 30 | 215 | 294 | 735 |
| 1/120 | Spur | Metal | 4 | 25 | 46.3 | 12 | 27 | 80 | 353 | 25 | 215 | 588 | 882 |
Gear ratio is a typical example. Other gear ratios are also available.
The notation of Max Rated Load Torque and Max Instant Torque is the value of the standard type. The torque exceeding the notation can be coped by changing gear material or gear thickness.

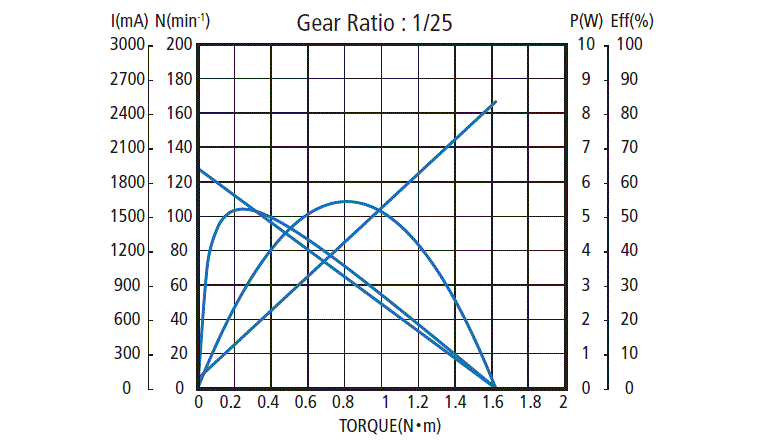

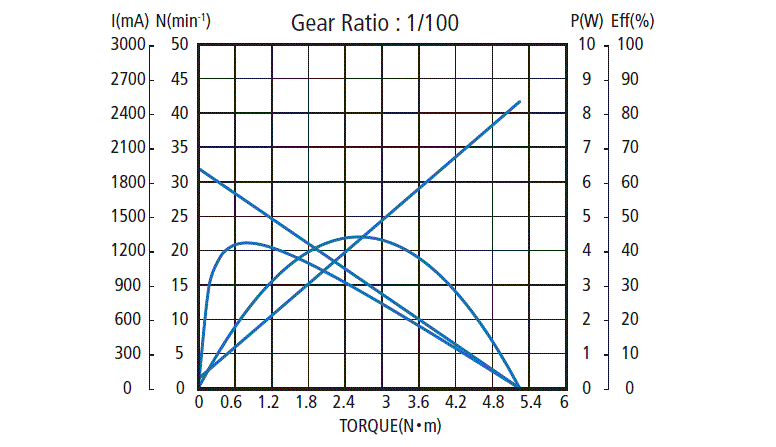

Property diagram
