Small brushless motors

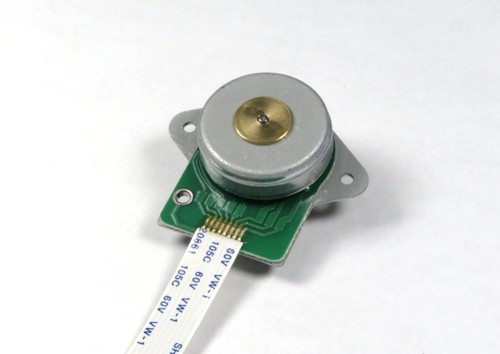

BML3

Overview

3 Phase outer rotor type DC Brushless Motor
Bearing : Can select Oil retaining bearing or Ball bearing
Connection : On request basis
Detent torque : It is possible to adjust the detent torque upon request.
Interface : Coil terminal
Input & Output of Hall sensor or Hall IC
Circuit : Can respond to the mounting of the drive IC
Shaft : It is possible to respond to the change of length, the shape of D-cut, the addition of the gear, etc..
Shaft output direction can be selected up and down.

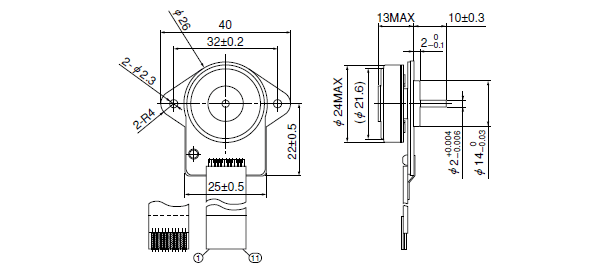

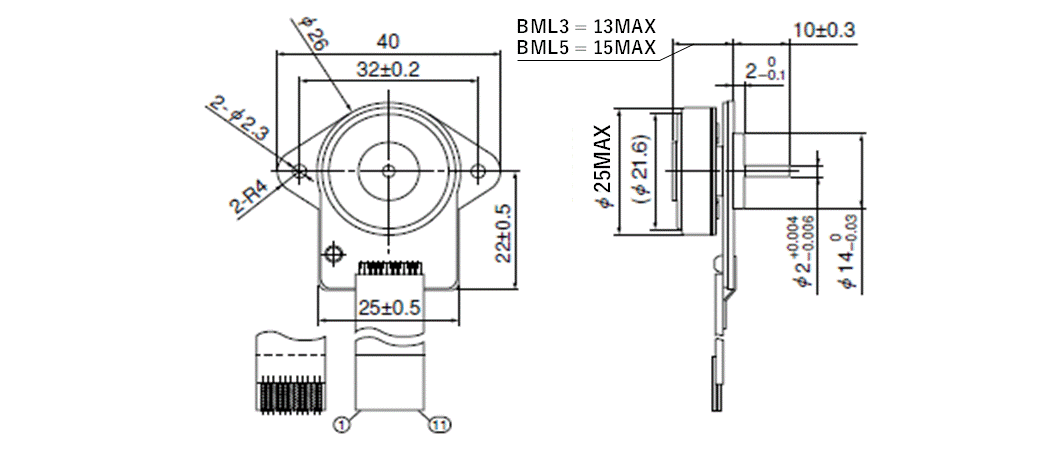

Overall View

Specification

Outer Diameter
[mm]
No load speed
[r/min]
Starting torque
[mN・m]
Maximum output power
[W]
Starting current
[mA]
Starting torquey
[%]
Speed at maximal efficiency
[r/min]
Speed at max output power
[r/min]
Life at 20 deg.C
[hour]
24.0 3000 11.0 0.9
(at 5.5mN·m)
320 55(at 2mN·m) 2400 1500 5000

* Major characteristic parameters at 12V.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

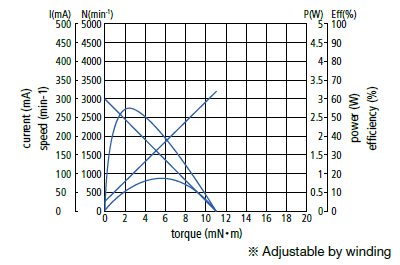

Property diagram
