Reference Characteristics
| Outer Diameter [mm] |
35.0 |
|---|---|
| Length [mm] |
15.50 |
| Step No. | 48 |
| Magnet Material | Ferrite plastic magnet(MSPL) Polar anisotropy ferrite sintered magnet(MS50) Nd-Fe-B bonded magnet(MS70) |
| Insulation Resistance (M) [Ω/min] |
100 |
| Dielectric Strength (AC) [V/min] |
500 |
| Step Angle [deg] |
7.50 |
| Drive Method | 2-2 phase |
| Class of Insulation | CLASS E |
| Operating Temp. lower limit [deg.C] |
-10 |
| Operating Temp. upper limit [deg.C] |
50 |
| Storage Temp. lower limit [deg.C] |
-30 |
| Storage Temp. upper limit [deg.C] |
80 |
| Operating Hum. RH lower limit [%] |
20 |
| Operating Hum. RH upper limit [%] |
90 |

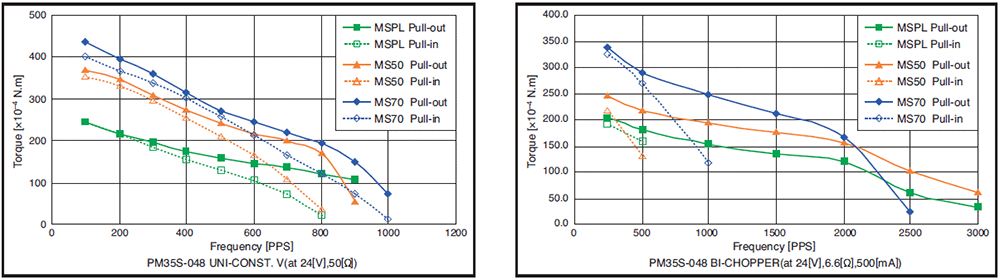

Torque Characteristic

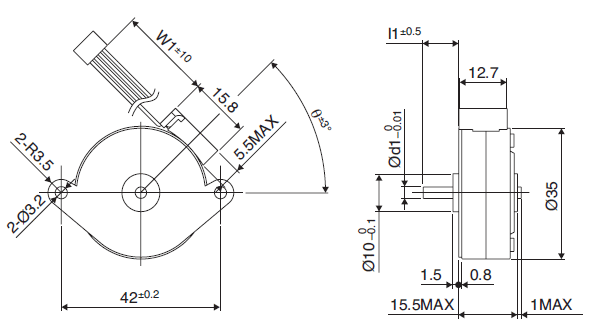

Overall View
Specifications
| Drive Circuit | Drive Voltage [V] |
Current/Phase [mA] |
Coil Resistance/Phase [Ω] |
Drive IC |
|---|
Applications
OA Equipment:Printers / Scanners
Industrial equipment:Flow control valves
Automotive:Maters / Optic axis control device
Home automation appliances:Sewing machines
