23KM-K(56□ 1.8°)

Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipment, semiconductor manufacturing equipment, factory automation equipment, robots and other industrial equipment.

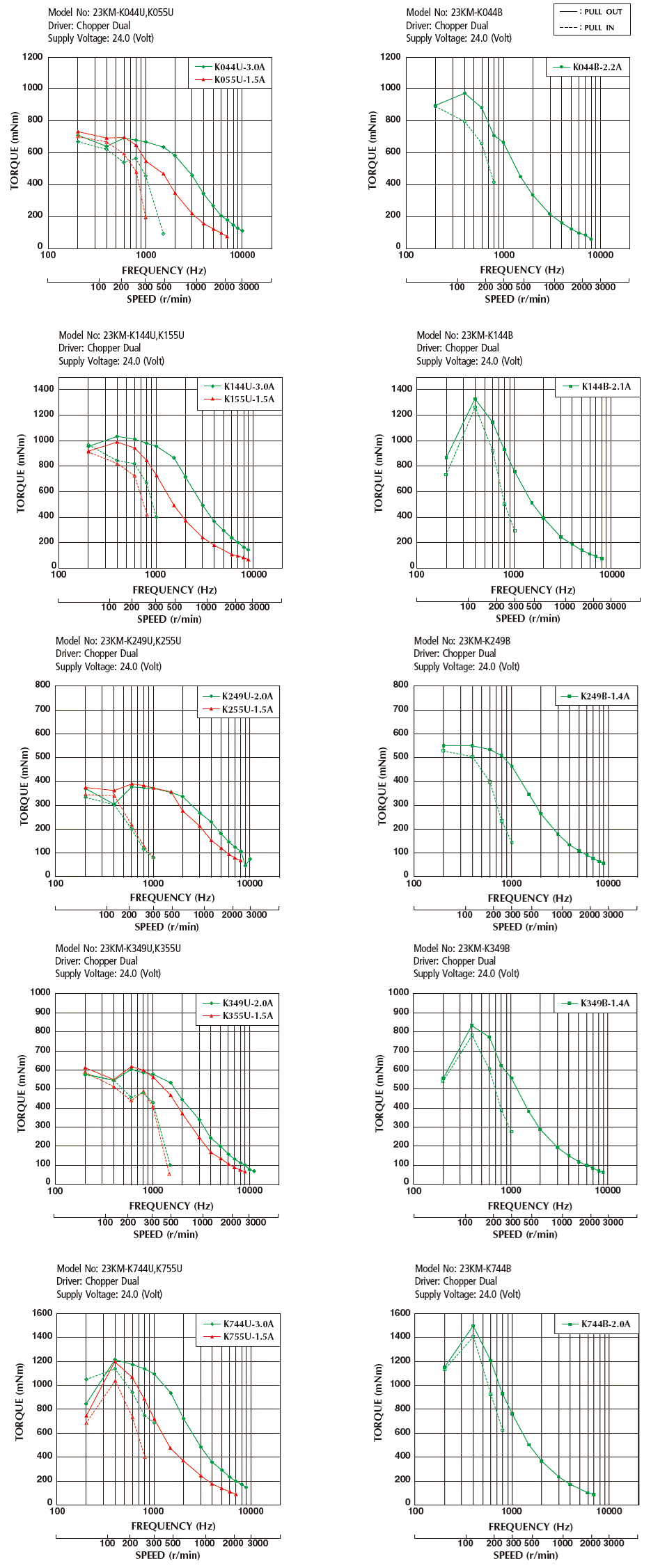

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Outer Diameter [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Mass [g]
23KM-K044U	56.4	1.800	UNI-POLAR	3.00	0.85	760	1.80	200.00	34.00	680
23KM-K055U	56.4	1.800	UNI-POLAR	1.50	3.30	760	6.70	200.00	34.00	680
23KM-K144U	56.4	1.800	UNI-POLAR	3.00	1.00	1050	2.20	290.00	49.00	900
23KM-K155U	56.4	1.800	UNI-POLAR	1.50	3.90	1050	8.00	290.00	49.00	900
23KM-K249U	56.4	1.800	UNI-POLAR	2.00	1.30	420	1.90	120.00	20.00	470
23KM-K255U	56.4	1.800	UNI-POLAR	1.50	2.30	420	3.60	120.00	20.00	470
23KM-K349U	56.4	1.800	UNI-POLAR	2.00	1.50	650	2.90	180.00	29.00	590
23KM-K355U	56.4	1.800	UNI-POLAR	1.50	2.90	650	5.50	180.00	29.00	590
23KM-K744U	56.4	1.800	UNI-POLAR	3.00	1.15	1200	2.70	360.00	50.00	1050
23KM-K755U	56.4	1.800	UNI-POLAR	1.50	4.60	1200	10.20	360.00	50.00	1050
23KM-K044B	56.4	1.800	BI-POLAR	2.20	1.70	1000	7.20	200.00	34.00	680
23KM-K144B	56.4	1.800	BI-POLAR	2.10	2.00	1250	8.70	290.00	49.00	900
23KM-K249B	56.4	1.800	BI-POLAR	1.40	2.40	540	7.70	120.00	20.00	470
23KM-K349B	56.4	1.800	BI-POLAR	1.40	3.00	800	11.80	180.00	29.00	590
23KM-K744B	56.4	1.800	BI-POLAR	2.00	2.30	1500	10.60	360.00	50.00	1050

scroll

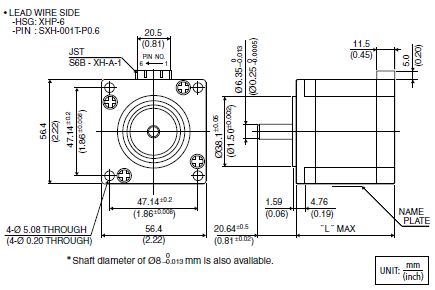

Model

size "L"
[mm]

size "L"
[Inch]

23KM-K2** 42.0 1.65

23KM-K3** 50.0 1.97

23KM-K0** 54.0 2.13

23KM-K1** 66.0 2.60

23KM-K7** 76.0 2.99
scroll

PHASE

A

A COM

A/

B

B COM

B/

PIN NO. 1 2 3 4 5 6
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD

Model	size "L" [mm]	size "L" [Inch]
23KM-K2**	42.0	1.65
23KM-K3**	50.0	1.97
23KM-K0**	54.0	2.13
23KM-K1**	66.0	2.60
23KM-K7**	76.0	2.99

PHASE	A	A COM	A/	B	B COM	B/
PIN NO.	1	2	3	4	5	6
