Features
Specifications
| Model | Outer Diameter [mm] |
Step Angle [°] |
Drive Sequence | Rated Current [A] |
Resistance [Ω] |
Holding Torque [mN・m] |
Inductance [mH] |
Rotor Inertia [g・cm2] |
Detent Torque [mN・m] |
Mass [g] |
|---|

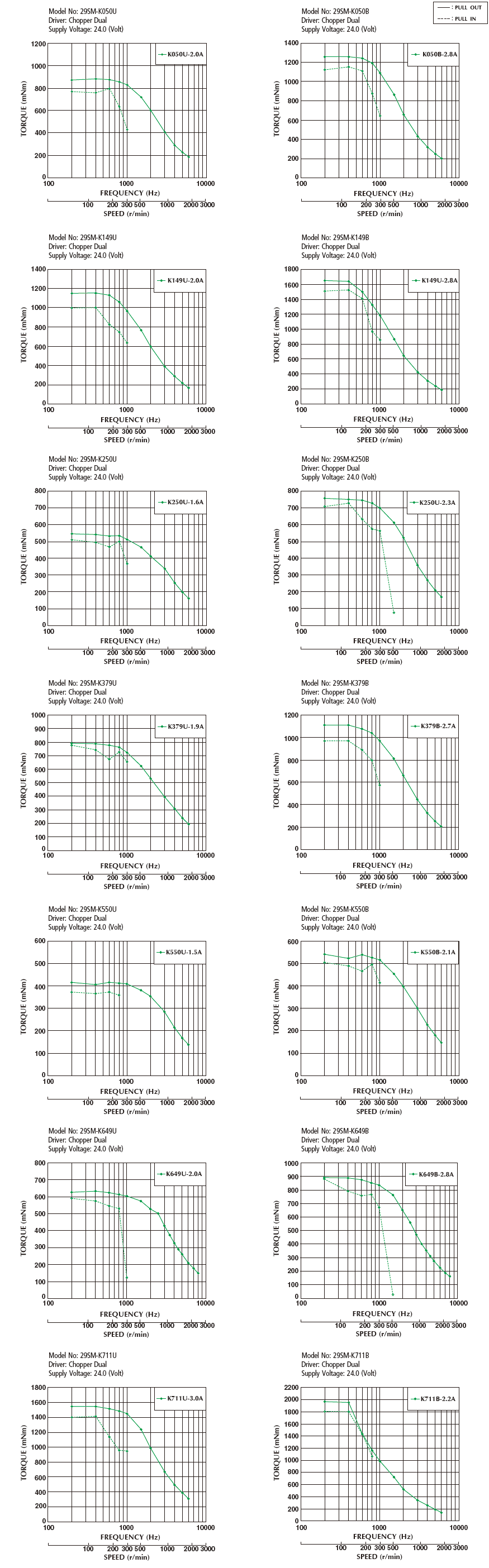

Torque/Speed Characteristics
Size
| Model | size "L" [mm] |
size "L" [Inch] |
|---|---|---|
| 29SM-K5** | 39.5 | 1.55 |
| 29SM-K2** | 43.5 | 1.71 |
| 29SM-K6** | 46.5 | 1.83 |
| 29SM-K3** | 51.5 | 2.03 |
| 29SM-K0** | 55.5 | 2.18 |
| 29SM-K1** | 67.5 | 2.66 |
| 29SM-K7** | 77.5 | 3.05 |

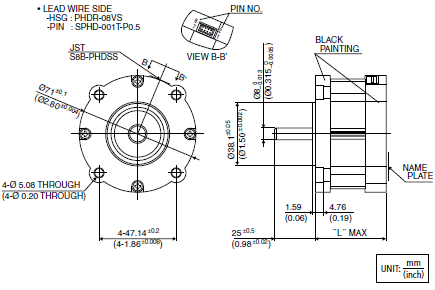

Overall View
Wiring Diagram
| PHASE | A | A COM | A/ | B | B COM | B/ |
|---|---|---|---|---|---|---|
| PIN NO. | 3 | 1 | 2 | 8 | 7 | 5 |
Download
Associated Data
CAD
