A23KM(IG Series)

Our hybrid stepping motor with encoders are two-phase stepping motors that use MinebeaMitsumi's high-performance ball bearings and come equipped with sensors that detect the positions of the rotors (optical rotary encoder). These motors can obtain information such as rotating speed, rotational direction, angle of rotation and amount of rotation as an output pulse.
Encoder specification: Optical encoder, 3-channel, 1600, 2400 and 4000CPR, Output Type Line driver.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

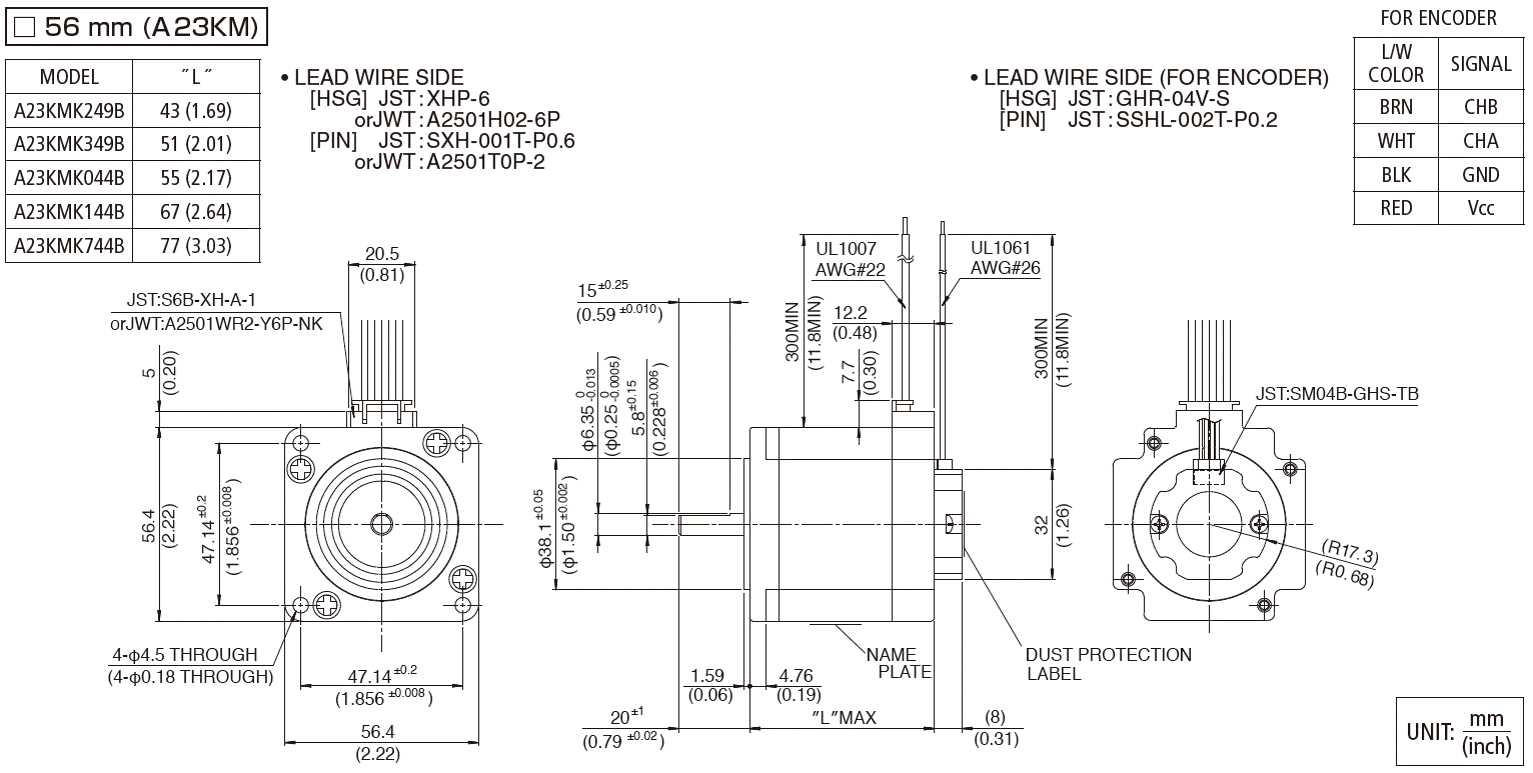

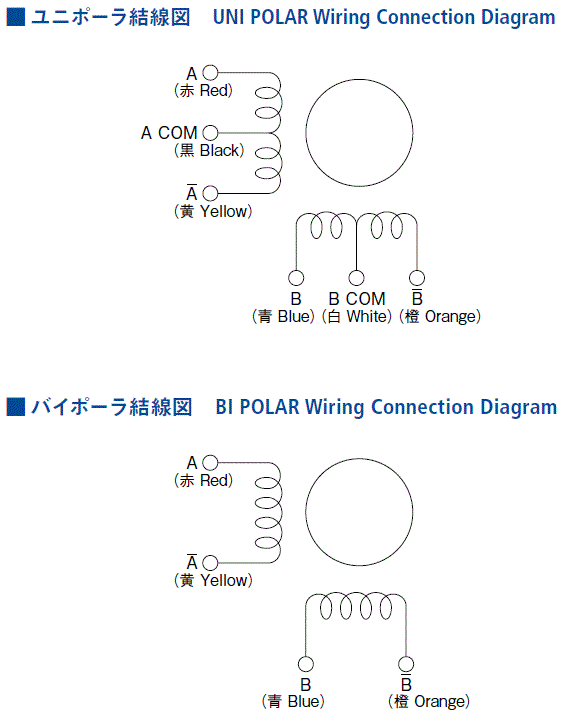

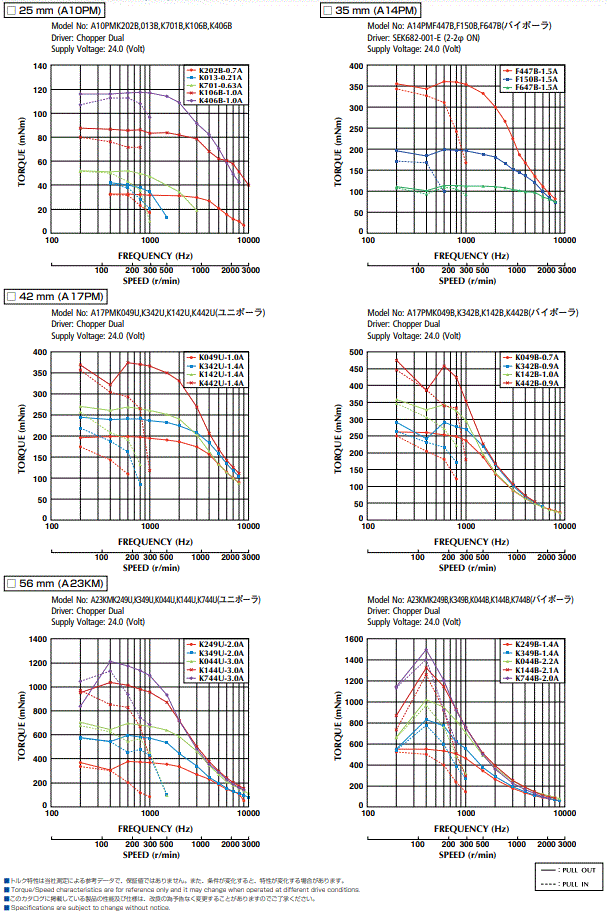

Model	Outer Diameter [mm]	Full length [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Encoder Resolution [CPR]	Mass [g]
A23KMK249U	56.4	50.0	1.800	UNI-POLAR	2.00	1.30	420	1.90	120.00	20.00	400	480
A23KMK349U	56.4	58.0	1.800	UNI-POLAR	2.00	1.50	650	2.90	180.00	29.00	400	600
A23KMK044U	56.4	62.0	1.800	UNI-POLAR	3.00	0.85	760	1.80	200.00	34.00	400	690
A23KMK144U	56.4	75.0	1.800	UNI-POLAR	3.00	1.00	1050	2.20	290.00	49.00	400	910
A23KMK744U	56.4	84.0	1.800	UNI-POLAR	3.00	1.15	1200	2.70	360.00	50.00	400	1060
A23KMK249B	56.4	50.0	1.800	BI-POLAR	1.40	2.40	540	7.70	120.00	20.00	400	480
A23KMK349B	56.4	58.0	1.800	BI-POLAR	1.40	3.00	800	11.80	180.00	29.00	400	600
A23KMK044B	56.4	62.0	1.800	BI-POLAR	2.20	1.70	1000	7.20	200.00	34.00	400	690
A23KMK144B	56.4	75.0	1.800	BI-POLAR	2.10	2.00	1250	8.70	290.00	49.00	400	910
A23KMK744B	56.4	84.0	1.800	BI-POLAR	2.00	2.30	1500	10.60	360.00	50.00	400	1060

scroll

Item	specifications
ENCODER TYPE	INCREMENTAL
DETECTION METHOD	REFRECTIVE SURFACE
OUTPUT SEAL	A, B (TWO CHANNEL)
RESOLUTION	400 CPR
SUPPLY VOLTAGE	DC 5V ± 0.5 V
OUTPUT VOLTAGE	-0.5V to +5.5V
WAVE FORM	RECTANGLE WAVE
COUT FREQUENCY	30 kHz MAX.
