Appearance
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_04_42.jpg)

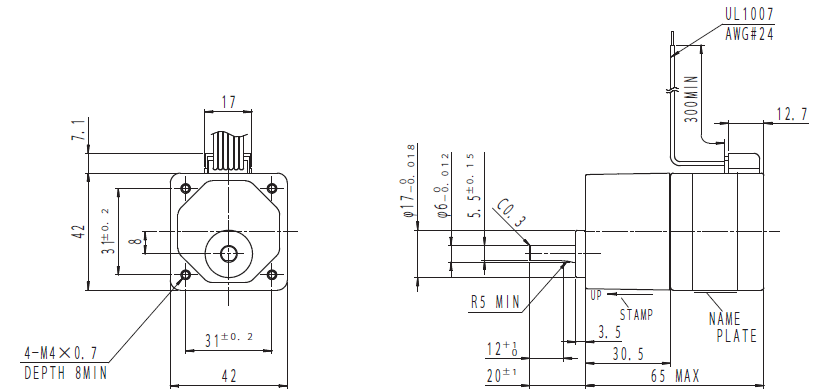

Overall View
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_07_16.png)
Wiring Diagram
PHASE | A | A COM | A/ | B | B COM | B/ |
---|---|---|---|---|---|---|
PIN NO. | 3 | 2 | 1 | 4 | 5 | 6 |
Specifications
Model | Outer Diameter [mm] |
Step Angle [°] |
Gear Ratio [1:X] |
Permissible Torque [N・m] |
Permissible Torque [kgf・cm] |
Drive Sequence | Rated Current [A] |
Resistance [Ω] |
Permissible Speed Range lower limit [r/min] |
Permissible Speed Range upper limit [r/min] |
Backlash [min(deg)] |
Mass [g] |
---|
*Drive Sequence:Unipolar
*Leadwires will be supplied with the motor.
*Direction of rotation of the motor and that of the gear output shaft are the same for the gear ratios 1:3.6, 1:7.2 and 1:10. It is the opposite for 1:20 and 1:30 gear ratio.

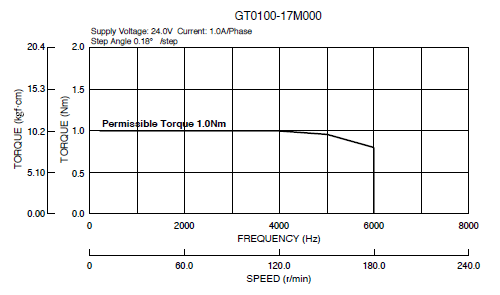

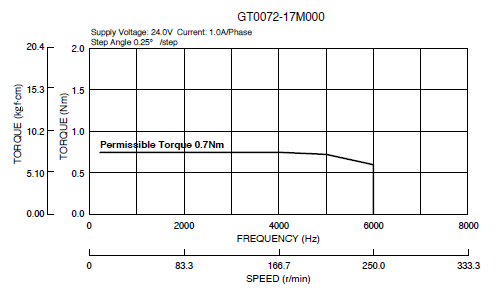

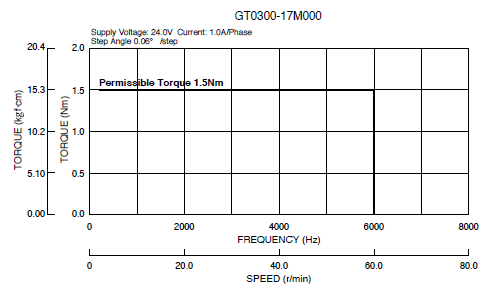

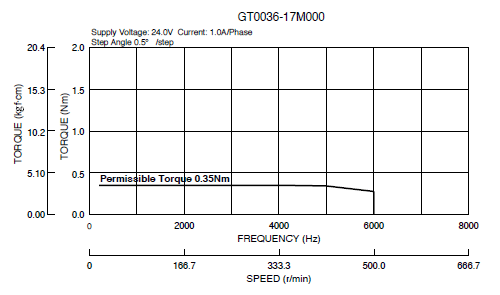

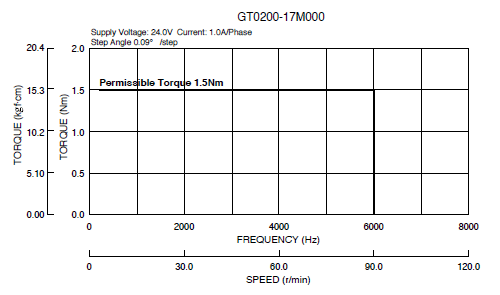

Torque/Speed Characteristics
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_01_42.gif)
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_04_6.gif)
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_07_18.gif)
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_01_44.gif)
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_04_8.gif)
