PL25L-A24

The PM-type stepping motor is a linear type that can convert rotational motion into linear motion through the screw mechanism of the shaft and rotor.

It retains the ease of control and high-precision positioning unique to stepping motors, while achieving high thrust and high responsiveness in a compact design through our proprietary engineering. By using two high-precision NMB brand ball bearings at the front and end, shaft play is minimized, enabling even more precise control.

We offer a range of shaft feed amounts from 0.025mm/step to 0.05mm/step. Customizations to meet your specific requirements, such as winding specifications, shaft length, and the choice between captive and non-captive types, are also available.

scroll

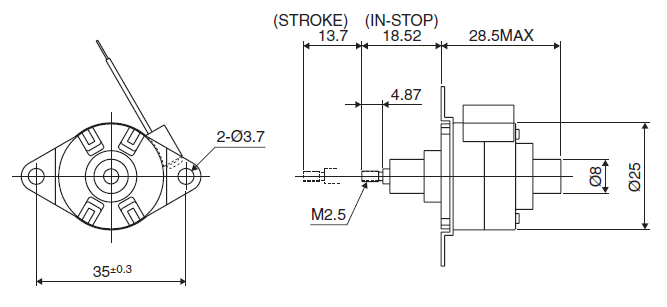

Linear Force range lower limit [N]	Linear Force range upper limit [N]	Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Drive Method	Resistance [Ω]	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
5	70	25.0	28.50	24	Nd-Fe-B bonded magnet(MS70)	100	500	2-2 phase	14.7	CLASS B	0	65	-30	80	20	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

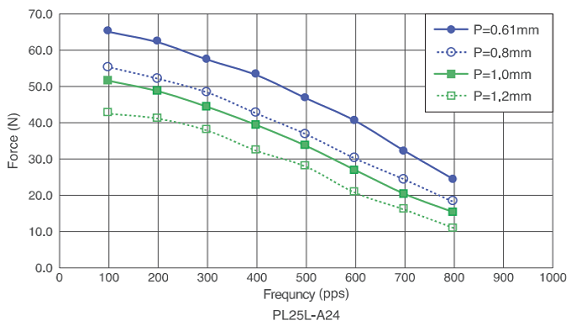

Screw Pitch [mm]	Pitch/Step (at 2phase on) [mm/Step]	Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Drive IC
0.610	0.025	BIPOLAR CHOPPER	12	300.0	BD63920MUV
0.800	0.033	BIPOLAR CHOPPER	12	300.0	BD63920MUV
1.000	0.042	BIPOLAR CHOPPER	12	300.0	BD63920MUV
1.200	0.050	BIPOLAR CHOPPER	12	300.0	BD63920MUV

Industrial equipment:Flow control valves
Communication equipment:Antenna adjustment device
Automotive:Optic axis control device
